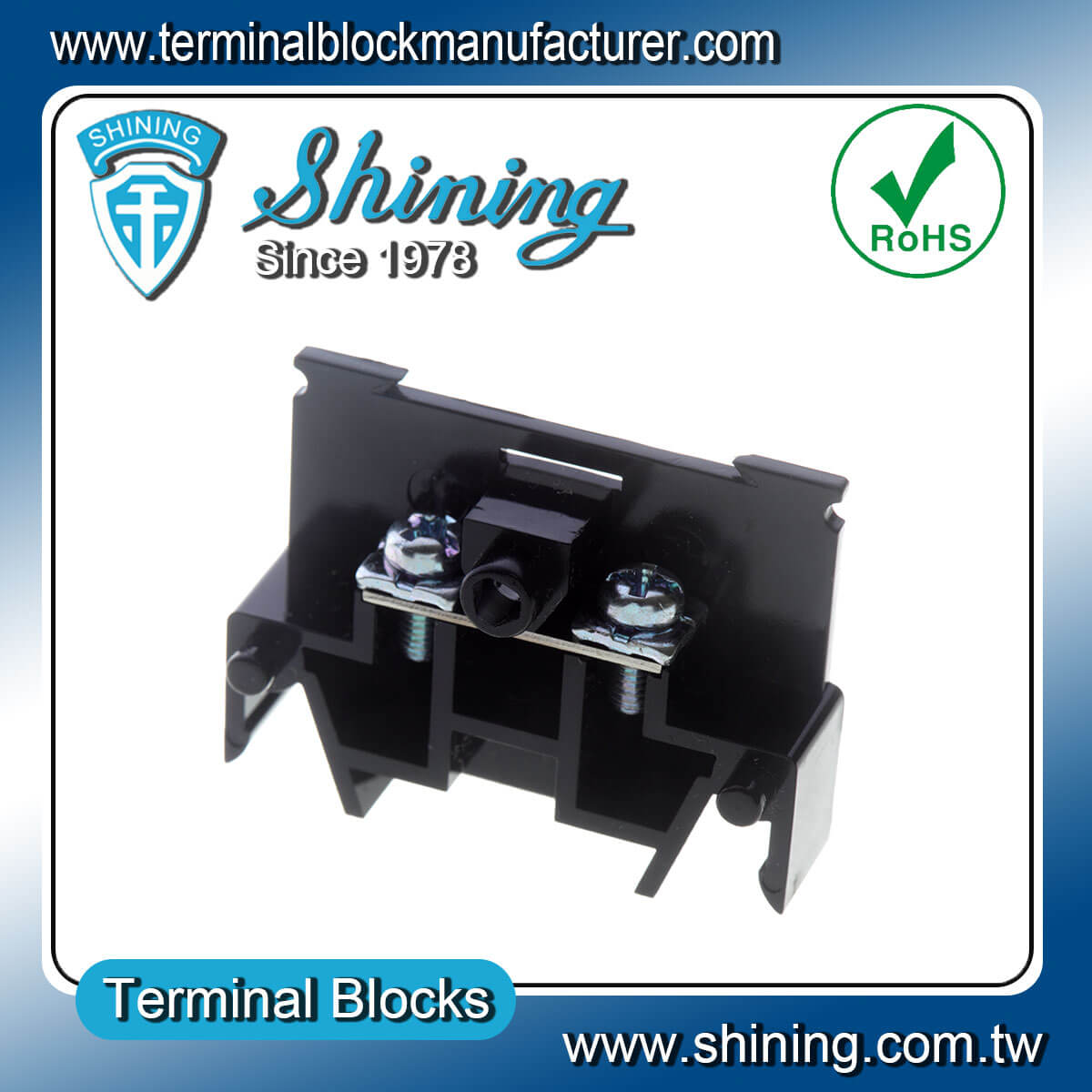

TA-010 35mm Din Rail Mounted Assembly Type 600V 10
Item number: TA-010 Rated Voltage: 600V Rated Current: 10A Size: 25.8*38.0*28.0mm (L*W*H) Wire Size: 1.6 mm2 / AWG 16 Screw Size: M3 -

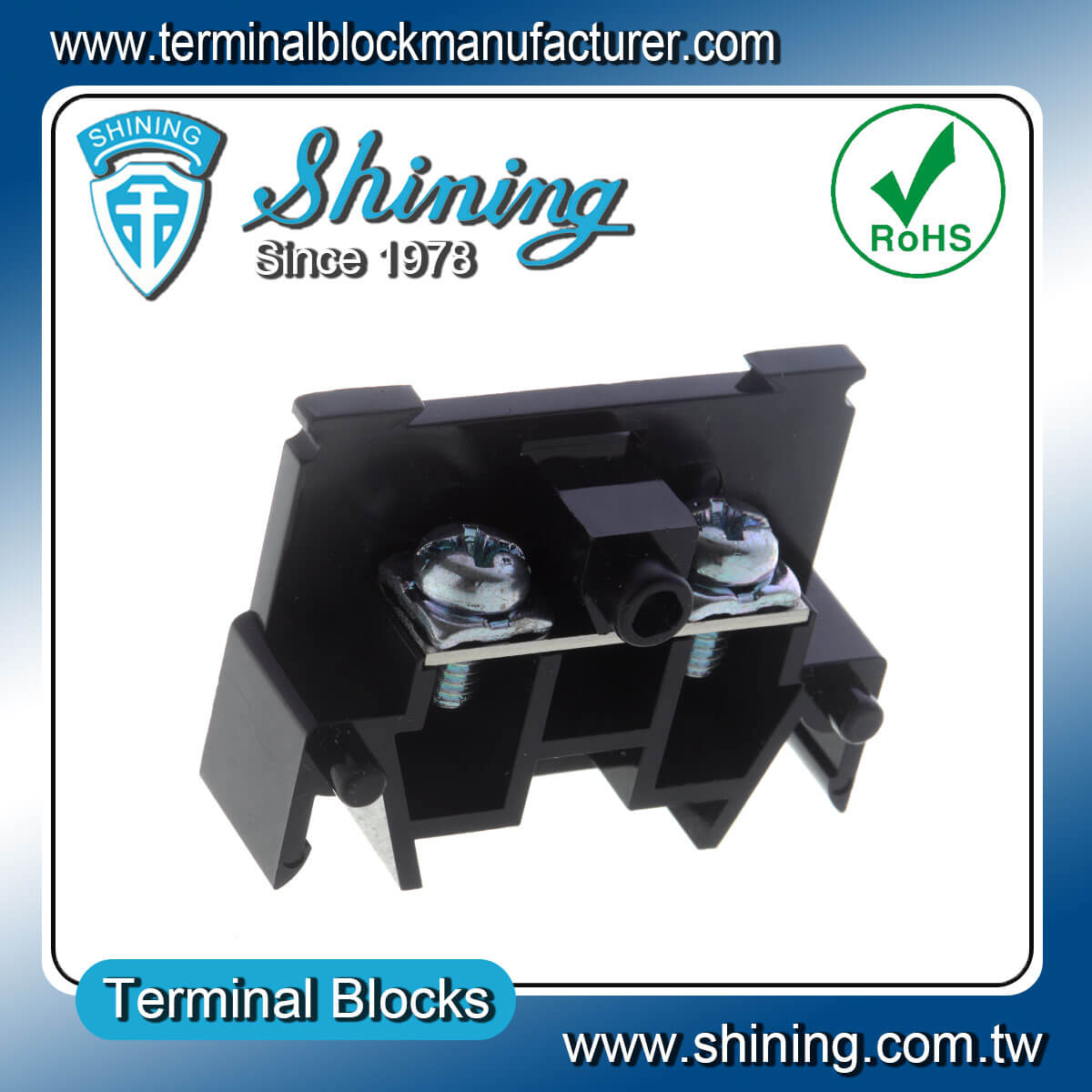

TA-020 35mm Din Rail Mounted Assembly Type Termina
Item number: TA-020Rated Voltage: 600VRated Current: 20ASize: 27.2*38.0*28.0mm (L*W*H)Wire Size: 4.0 mm2 / AWG 12Screw Size: M4 -

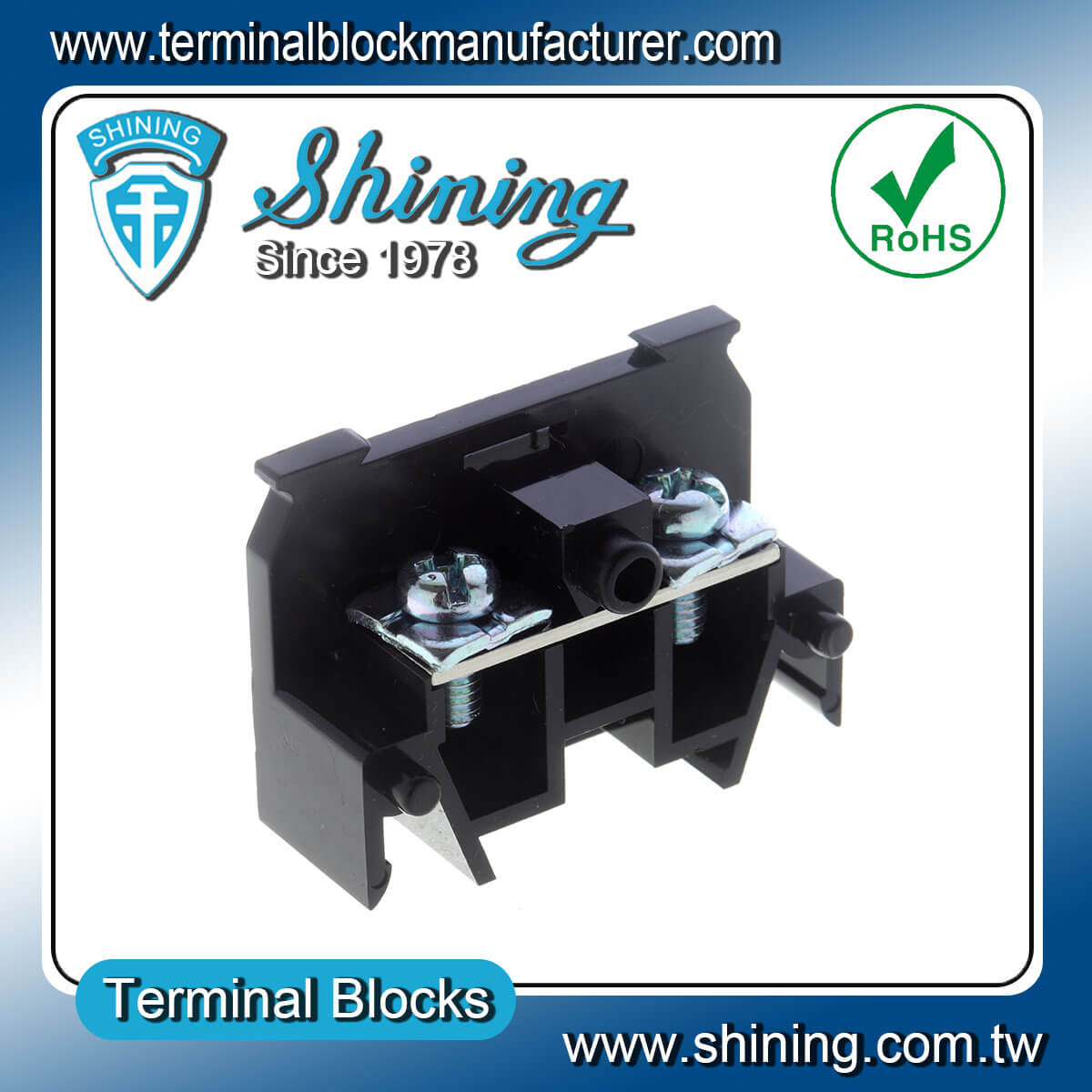

TA-030 35mm Din Rail Mounted Assembly Type 600V 30
Item number: TA-030 Rated Voltage: 600V Rated Current: 30A Size: 30.0*38.0*28.0mm (L*W*H) Wire Size: 6.0 mm2 / AWG 10 Screw Size: M4 -

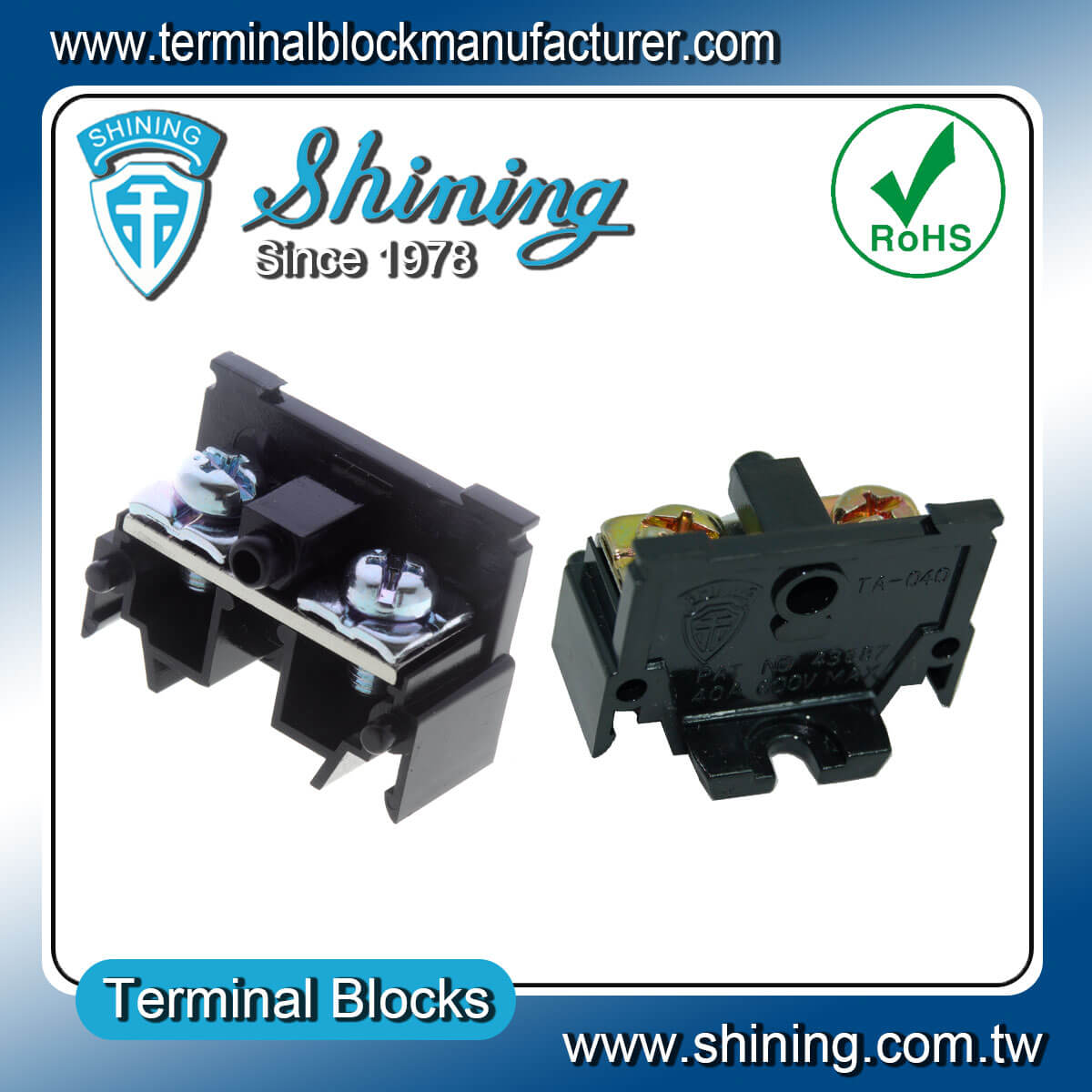

TA-040 35mm Din Rail Mounted Assembly Type 600V 40
Item number: TA-040 Rated Voltage: 600V Rated Current: 40A Size: 32.0*38.0*28.0mm (L*W*H) Wire Size: 10.0 mm2 / AWG 8 Screw Size: M5 -
TA-060 35mm Din Rail Mounted Assembly Type 600V 60
Item number: TA-060 Rated Voltage: 600V Rated Current: 60A Size: 54.5*50.0*38.0mm (L*W*H) Wire Size: 16.0 mm2 / AWG 6 Screw Size: M6 -

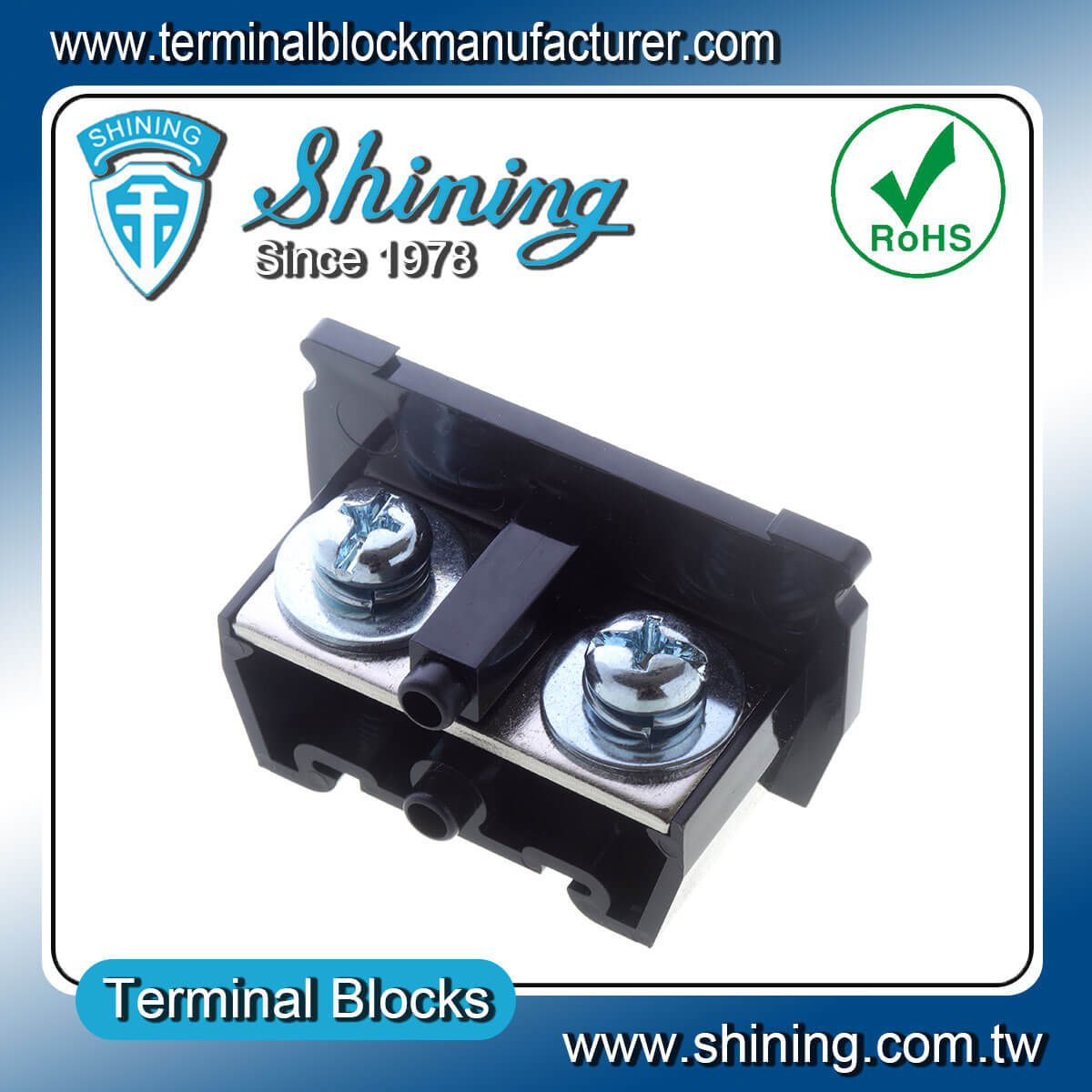

TA-100 35mm Din Rail Mounted Assembly Type 600V 10
Item number: TA-100 Rated Voltage: 600V Rated Current: 100A Size: 62.0*64.0*41.0mm (L*W*H) Wire Size: 35.0 mm2 / AWG 2 Screw Size: M8 -

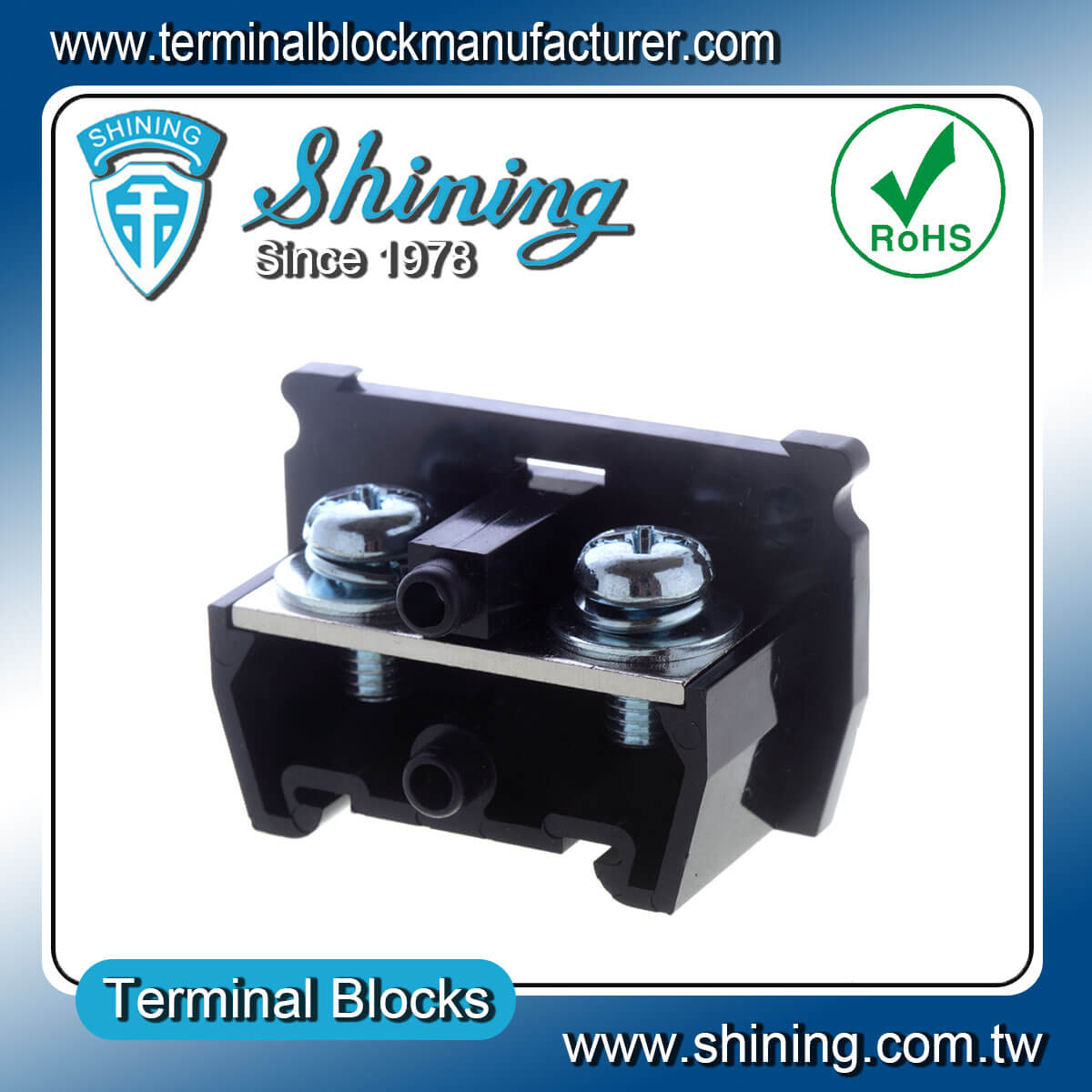

TA-150 35mm Din Rail Mounted Assembly Type 600V 15
Item number: TA-150 Rated Voltage: 600V Rated Current: 150A Size: 64.0*70.0*42.0mm (L*W*H) Wire Size: 60.0 mm2 / 1/0 Screw Size: M8 -

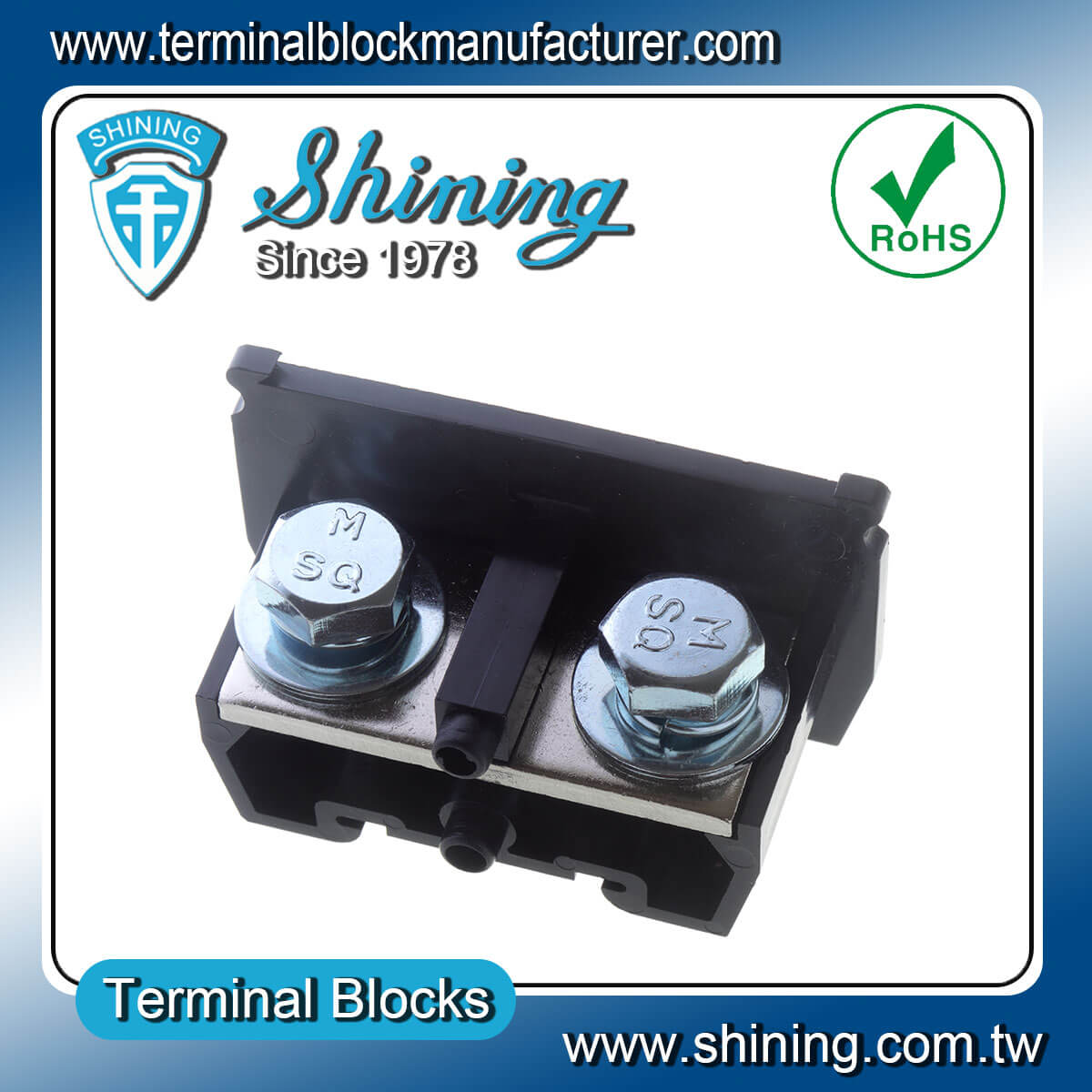

TA-200 35mm Din Rail Mounted Assembly Type 600V 20
Item number: TA-200 Rated Voltage: 600V Rated Current: 200A Size: 70.0*80.0*47.0mm (L*W*H) Wire Size: 100.0 mm2 / 3/0 Screw Size: M10 -

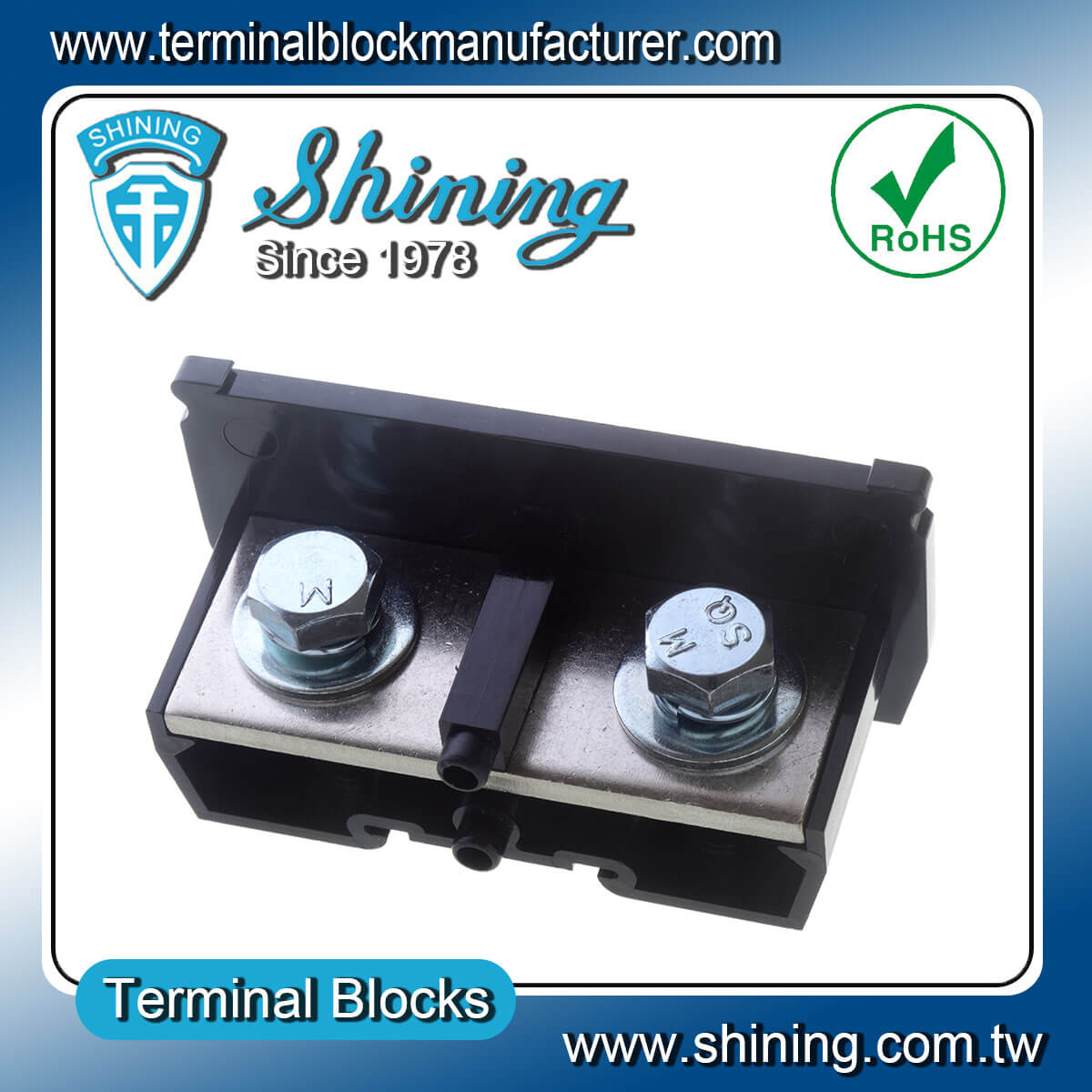

TA-300 35mm Din Rail Mounted Assembly Type 600V 30
Item number: TA-300 Rated Voltage: 600V Rated Current: 300A Size: 76.0*106.0*50.0mm (L*W*H) Wire Size: 175.0 mm2 / 350 Screw Size: M10 -

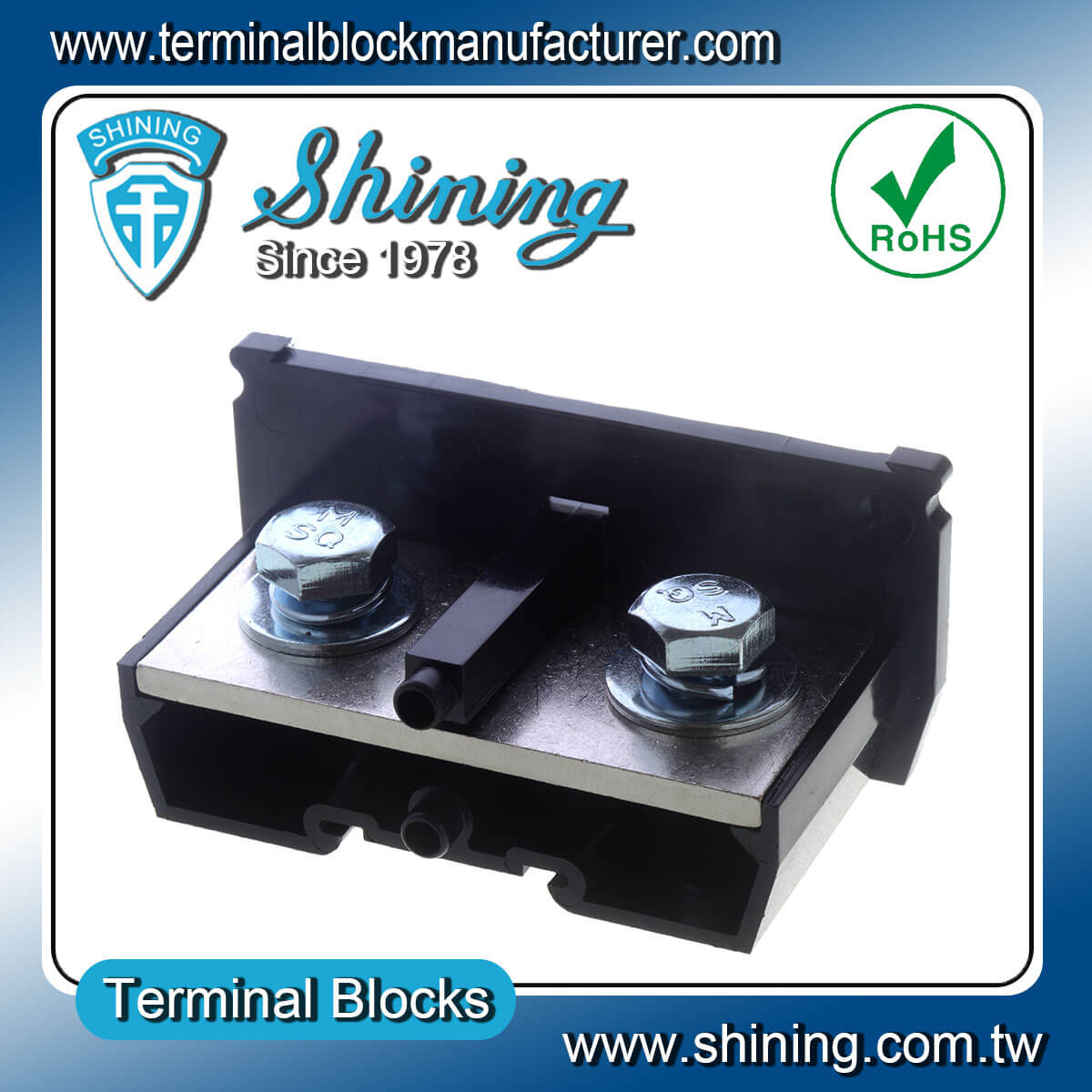

TA-400 35mm Din Rail Mounted Assembly Type 600V 40
Item number: TA-400 Rated Voltage: 600V Rated Current: 400A Size: 85.0*106.0*50.0mm (L*W*H) Wire Size: 280.0 mm2 / 550 Screw Size: M10
