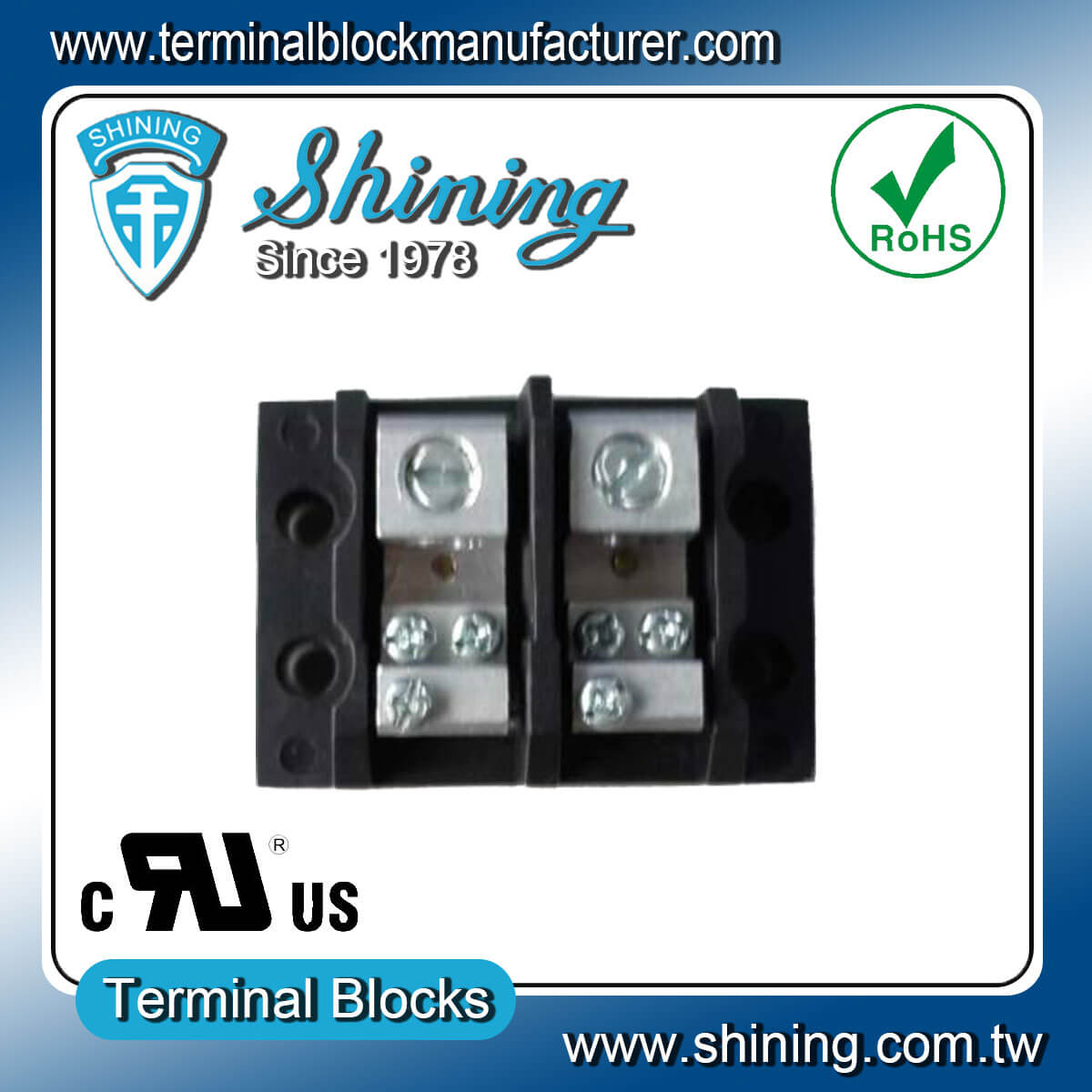

TGP-085-02JSC 600V 85A 2Pin Power DistributionTer
Item number: TGP-085-02JSC Rated Voltage: 600V Rated Current: 85A Pin: 2 Size: 59.8*41.0*33.2mm (L*W*H) Wire Size: Input: #14-2 AWG / Output: #20-12 AWG Screw: Slotted Set Screw Screw Size: 5/16-24 -

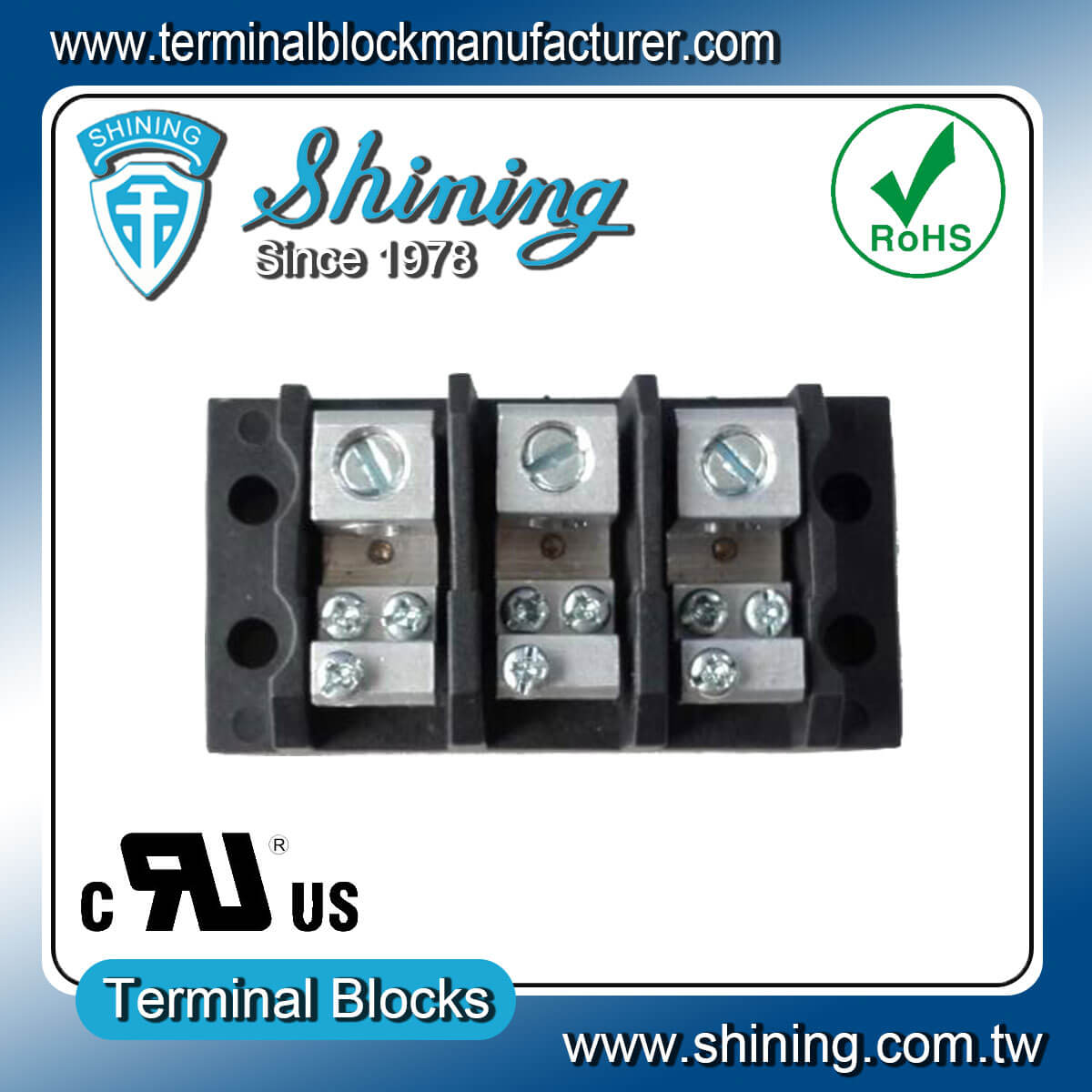

TGP-085-03JSC 600V 85A 3Pin Power DistributionTer
Item number: TGP-085-03JSC Rated Voltage: 600V Rated Current: 85A Pin: 3 Size: 79.0*41.0*33.2mm (L*W*H) Wire Size: Input: #14-2 AWG / Output: #20-12 AWG Screw: Slotted Set Screw Screw Size: 5/16-24 -
TGP-085-04JSC 600V 85A 4Pin Power DistributionTer
Item number: TGP-085-04JSC Rated Voltage: 600V Rated Current: 85A Pin: 4 Size: 97.4*41.0*33.2mm (L*W*H) Wire Size: Input: #14-2 AWG / Output: #20-12 AWG Screw: Slotted Set Screw Screw Size: 5/16-24 -

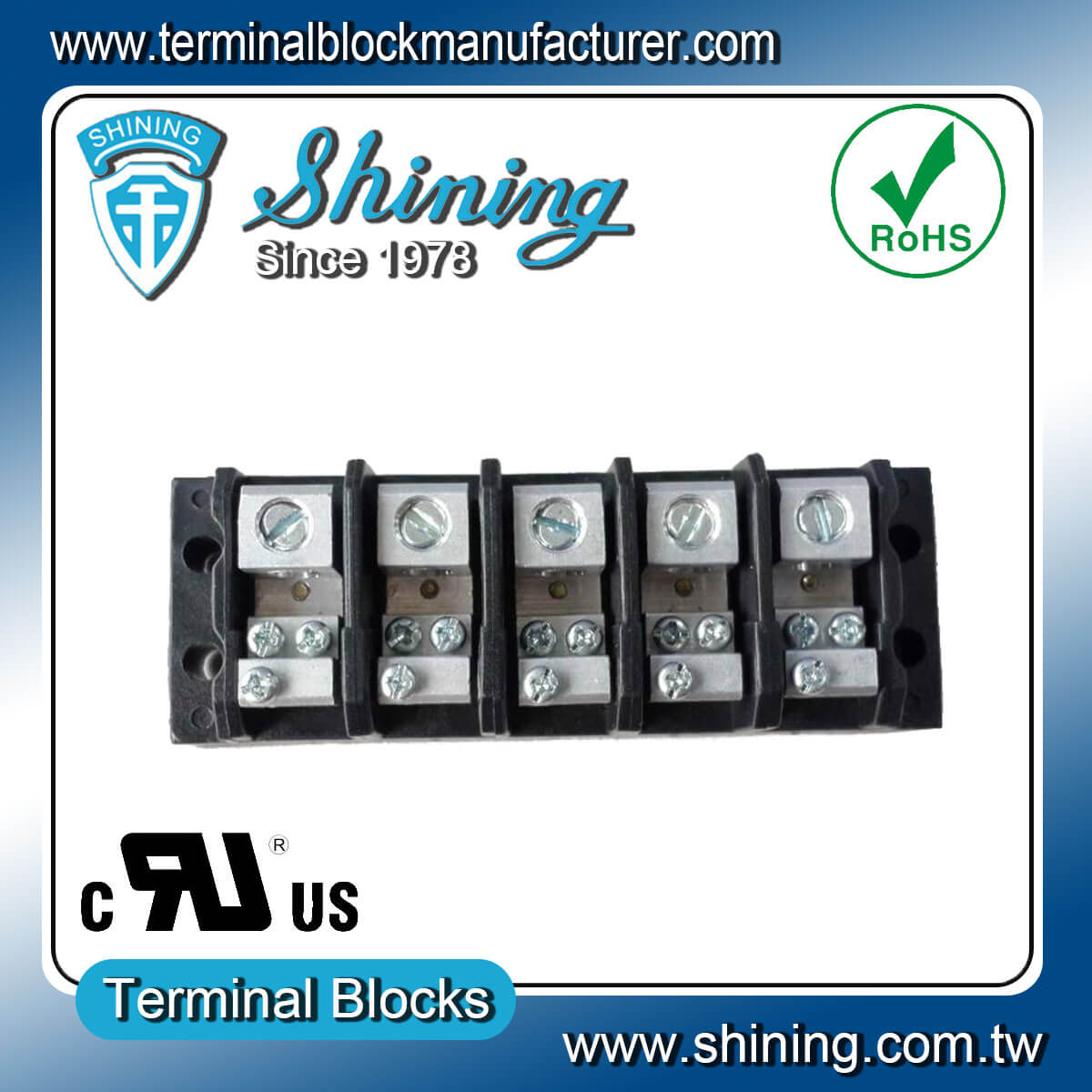

TGP-085-05JSC 600V 85A 5Pin Power DistributionTer
Item number: TGP-085-05JSC Rated Voltage: 600V Rated Current: 85A Pin: 5 Size: 116.8*41.0*33.2mm (L*W*H) Wire Size: Input: #14-2 AWG / Output: #20-12 AWG Screw: Slotted Set Screw Screw Size: 5/16-24 -

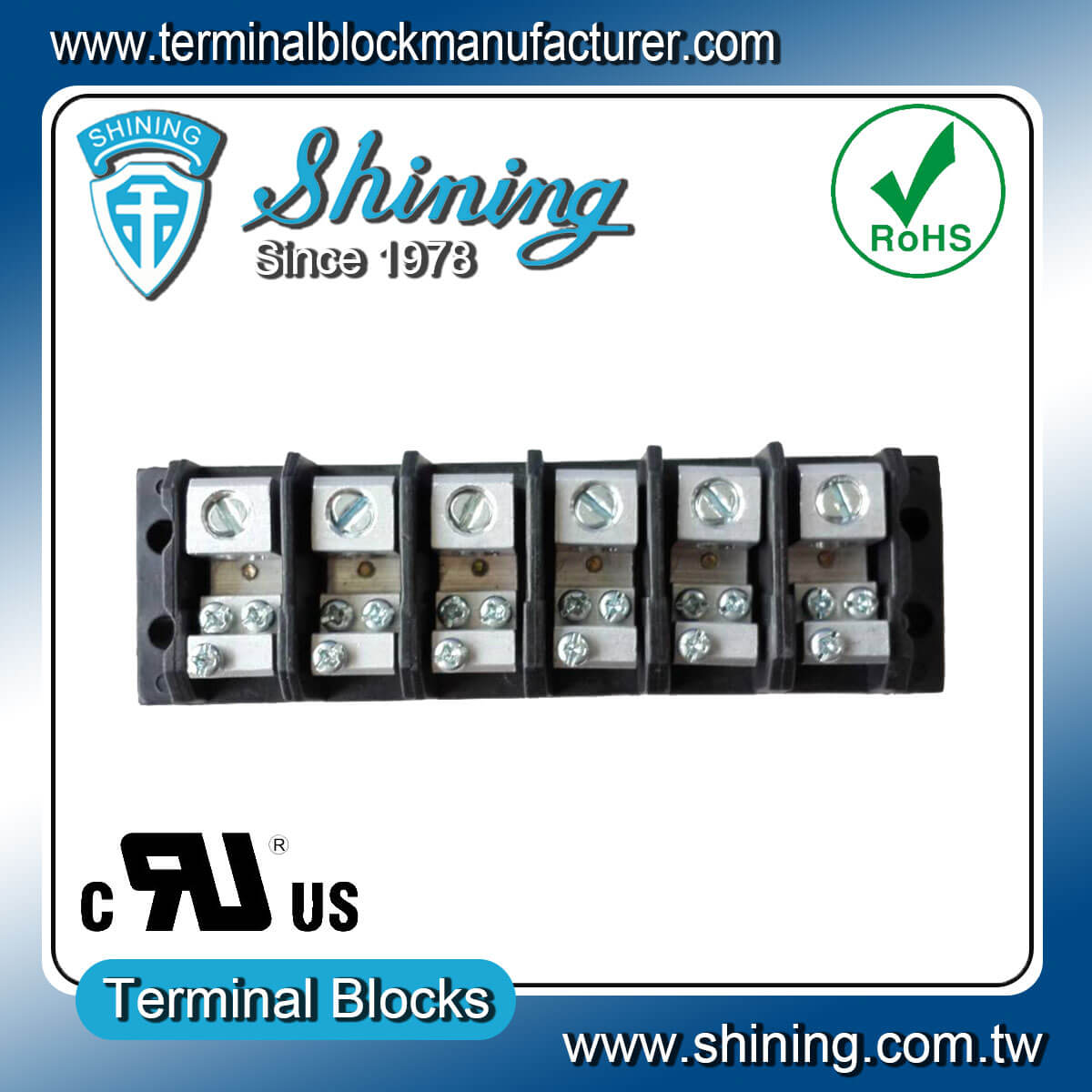

TGP-085-06JSC 600V 85A 6Pin Power DistributionTer
Item number: TGP-085-06JSC Rated Voltage: 600V Rated Current: 85A Pin: 6 Size: 136.2*41.0*33.2mm (L*W*H) Wire Size: Input: #14-2 AWG / Output: #20-12 AWG Screw: Slotted Set Screw Screw Size: 5/16-24 -

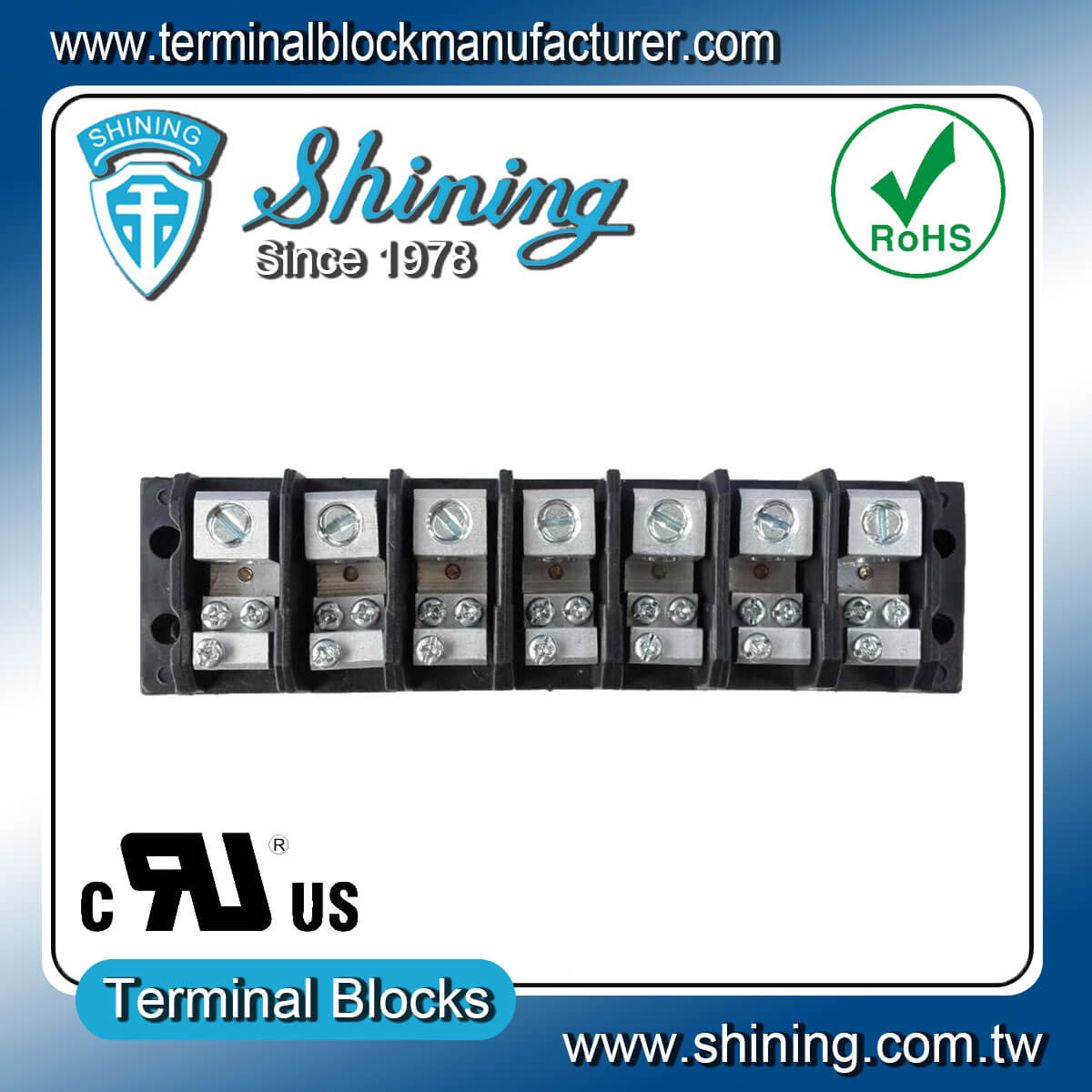

TGP-085-07JSC 600V 85A 7Pin Power DistributionTer
Item number: TGP-085-07JSC Rated Voltage: 600V Rated Current: 85A Pin: 7 Size: 154.8*41.0*33.2mm (L*W*H) Wire Size: Input: #14-2 AWG / Output: #20-12 AWG Screw: Hexagon Socket Set Screw Screw Size: 5/16-24 -

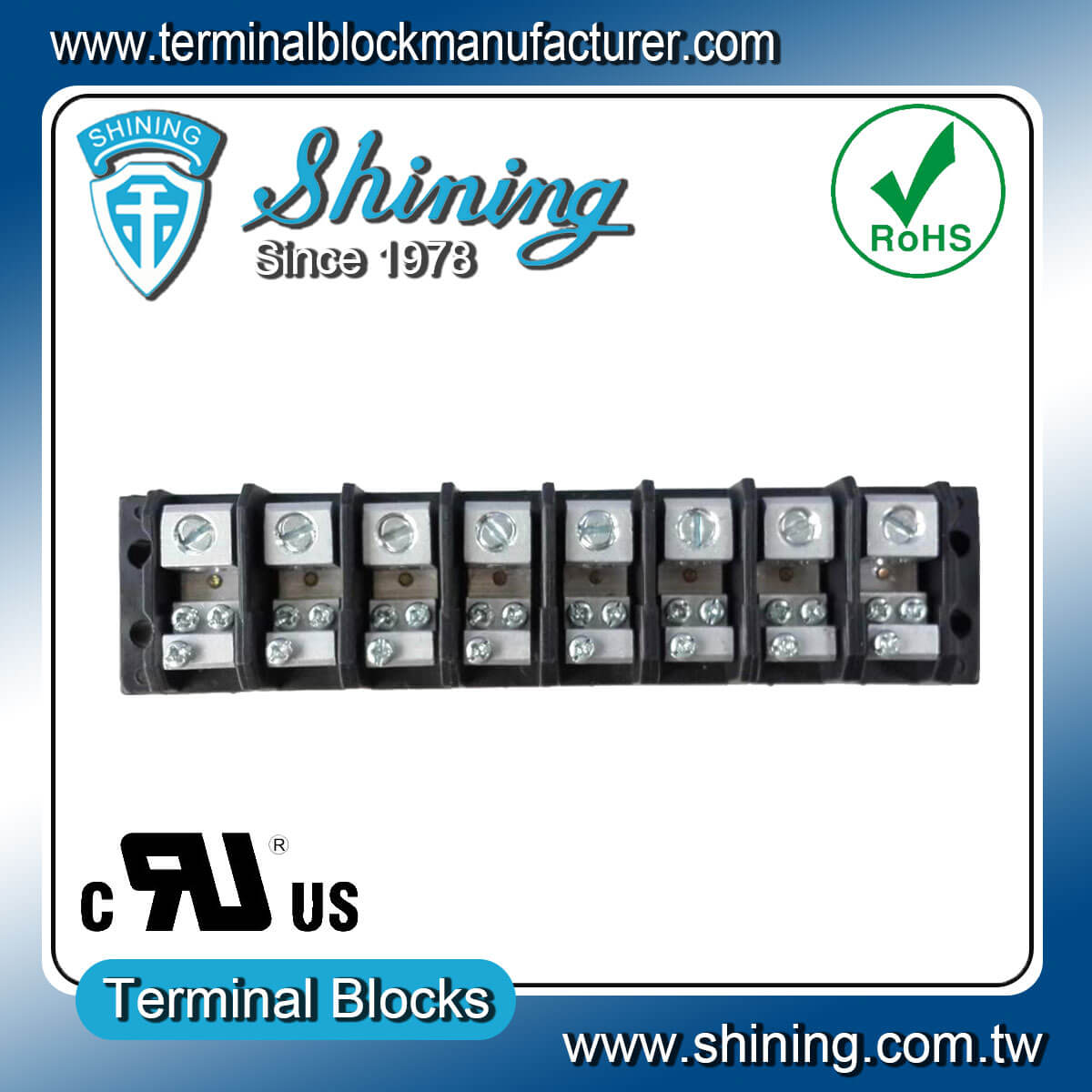

TGP-085-08JSC 600V 85A 8Pin Power DistributionTer
Item number: TGP-085-08JSC Rated Voltage: 600V Rated Current: 85A Pin: 8 Size: 174.0*41.0*33.2mm (L*W*H) Wire Size: Input: #14-2 AWG / Output: #20-12 AWG Screw: Slotted Set Screw Screw Size: 5/16-24
