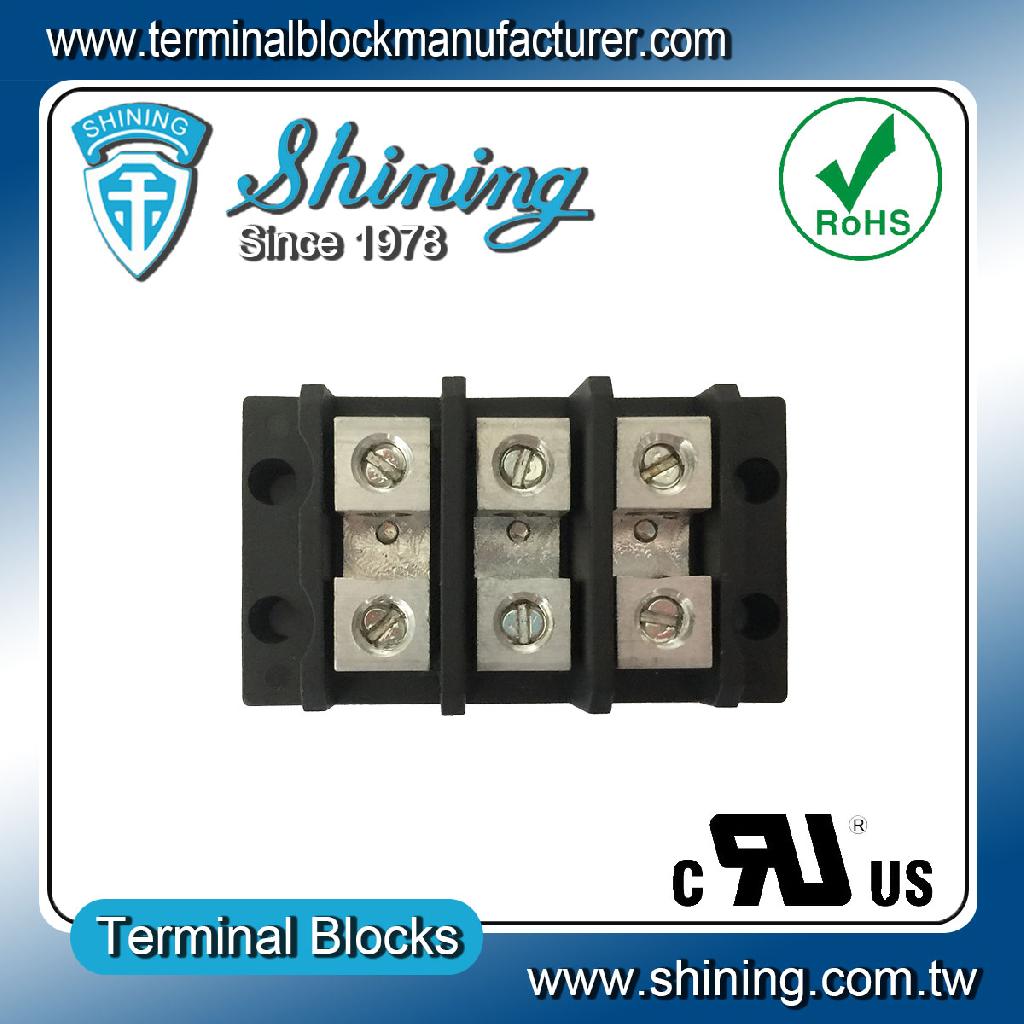

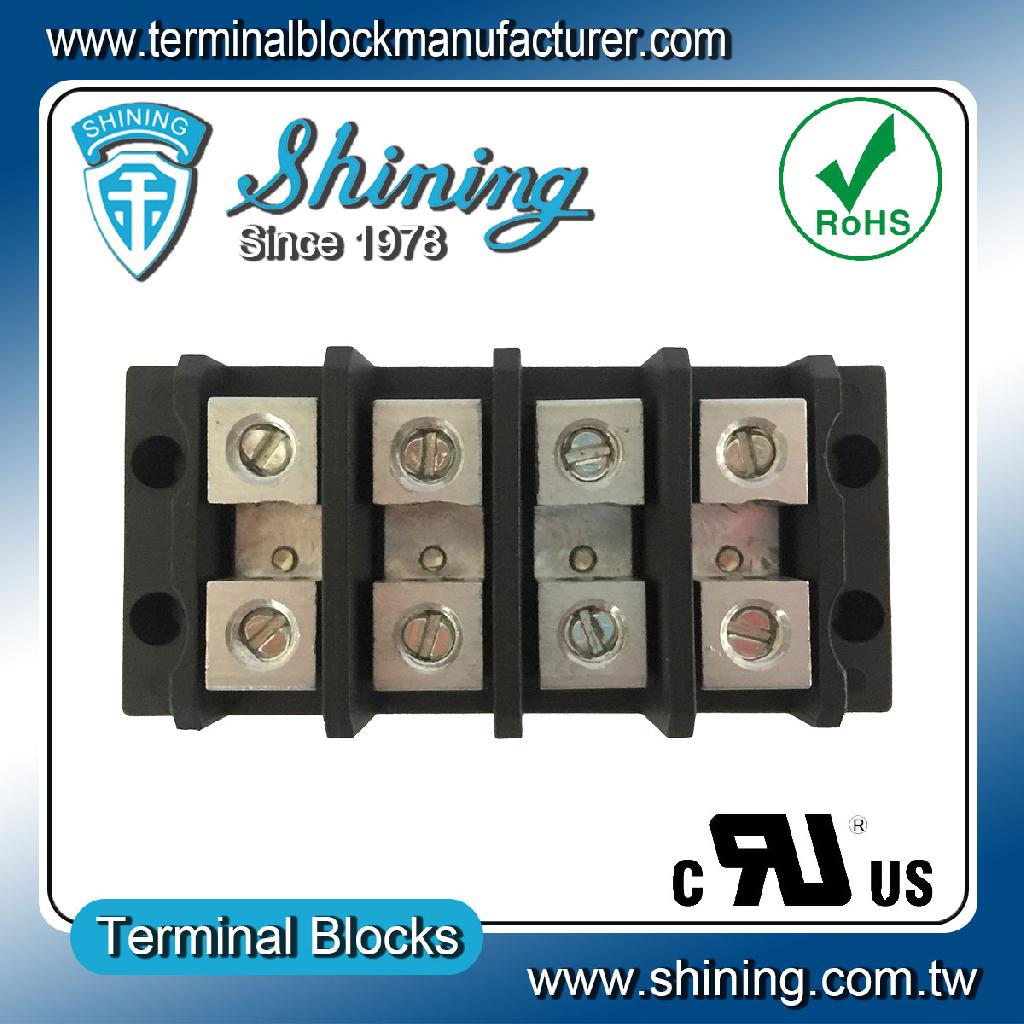

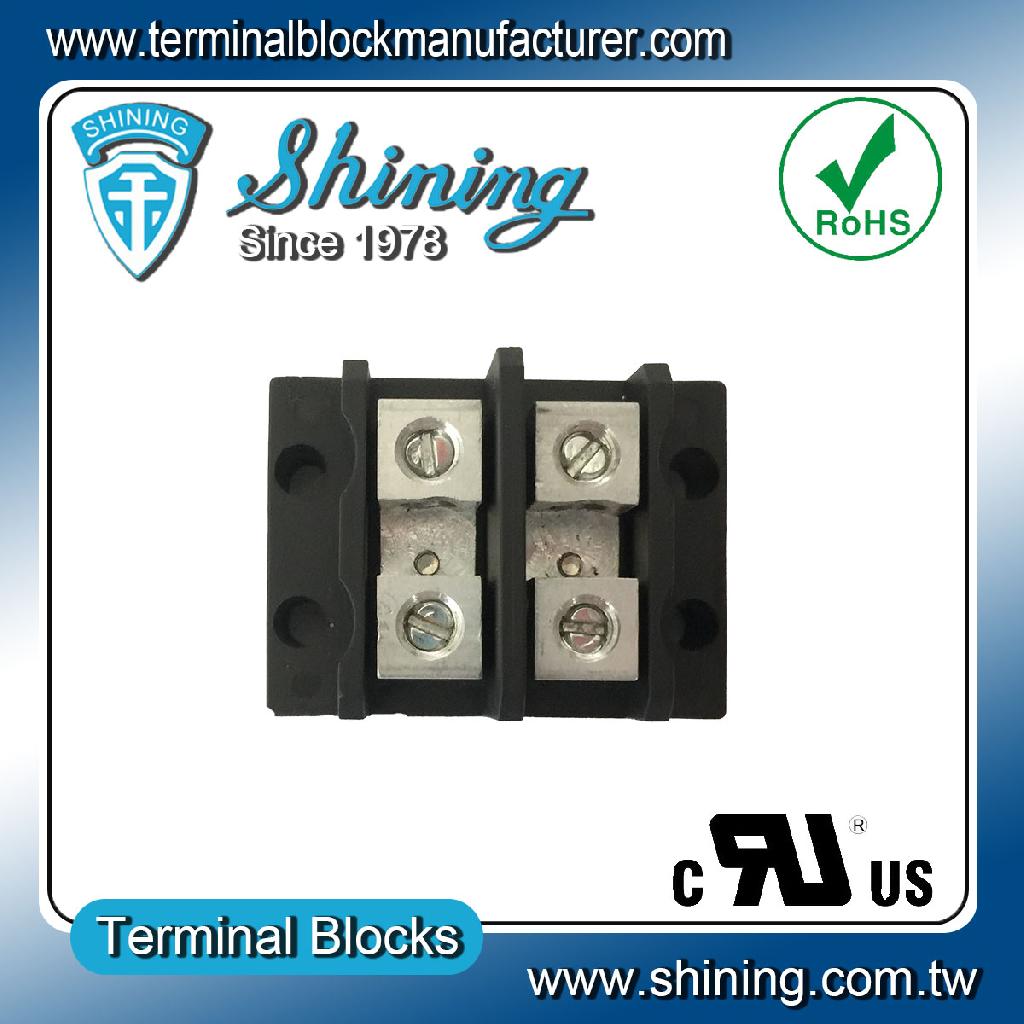

TGP-050-XXDSS-600V 50A Power Splicer Terminal Block

TGP-050-XXDSS Series Bolt Terminal Block, Rated Voltage: 600V. Rated Current: 50A. Torsional Moment: 60 in-lb. Wire Size: # 6-16 AWG. Screw, Bolt, Watson Material: Steel / stainless steel. Terminal material: aluminum. A total of 1 ~ 4P available for purchase. SHINING TGP-050-XXPLL series studs terminal blocks Product Type: TGP-050-02DSS / TGP-050-03DSS / TGP-050-04DSS Rated voltage: 600V Rated current: 50A Installation: Mount the panel with screws Number of electrodes P: 2 ~ 4 Pole Features: 1. Screw material - iron / stainless steel. Screw (M6-1.0)               2. Bolt size - M6 x 19.0 mm, galvanized galvanized               3. Input - 1 in (bolt); Output - 1 out (bolt)
