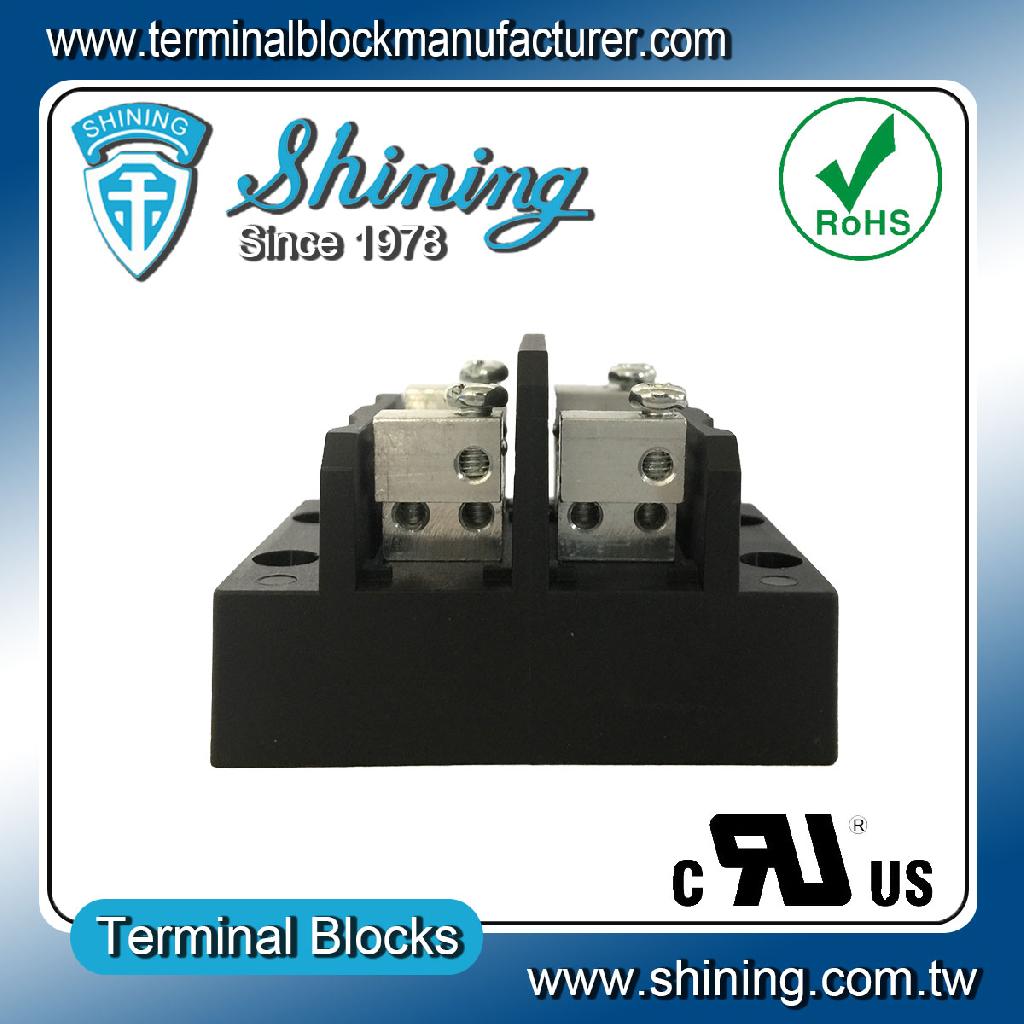

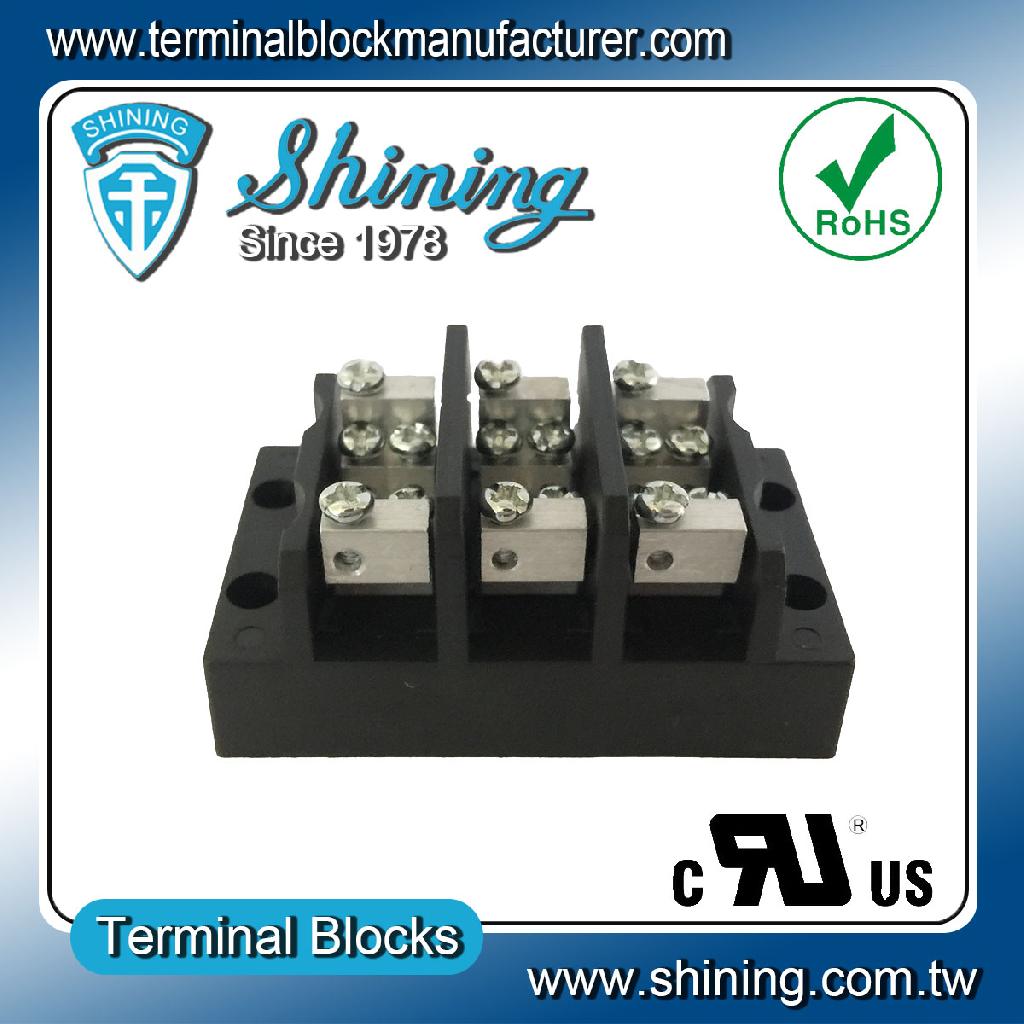

TGP-050-XXMCC-600V 50A Power Splicer Distribution Terminal Block

TGP-050-XXMCC Series Bolt Terminal Block, Rated Voltage: 600V. Rated Current: 50A. Torsional Moment: 60 in-lb. Wire Size: # 2-14 AWG. Screw, Bolt, Watson Material: Steel / stainless steel. Terminal material: aluminum. A total of 1 ~ 4P available for purchase.
SHINING TGP-050-XXPLL series power splicer distribution terminal blocks
Product Type: TGP-050-02MCC / TGP-050-03MCC / TGP-050-04MCC
Rated voltage: 600V
Rated current: 50A
Installation: Mount the panel with screws
Number of electrodes P: 2 ~ 4 Pole
Features: 1. Screw material - iron / stainless steel. Screw (M6-1.0)
              2. Bolt size - M6 x 19.0 mm, galvanized galvanized
              3. Input - 3 in ; Output - 3 out
