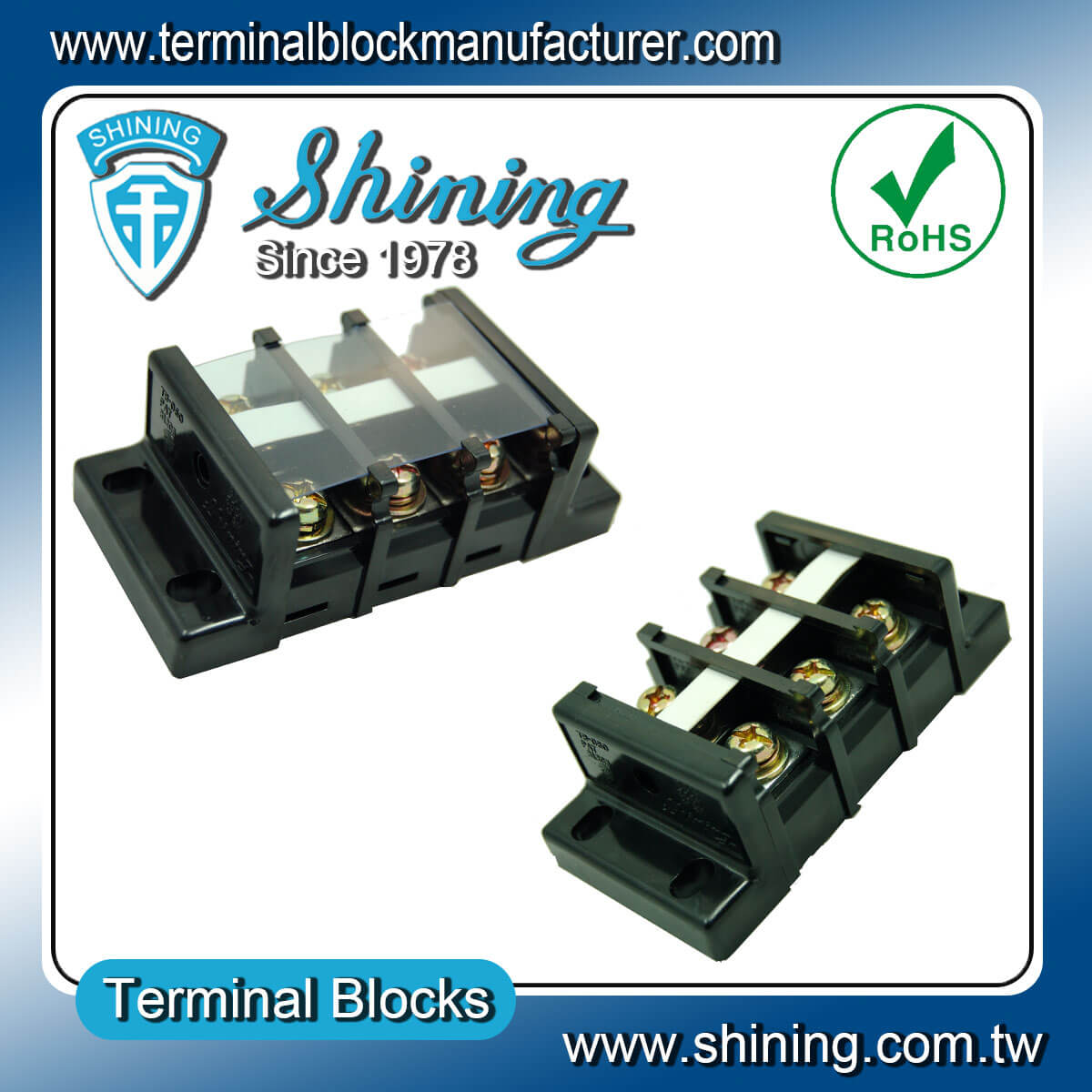

TB-060 Panel Mounted Assembly Type 600V 60A Termin
Item number: TB-060 Rated Voltage: 600V Rated Current: 60A Size: 62.5*52.0*34.0mm (L*W*H) Wire Size: 16.0 mm2 / AWG 6 Screw Size: M6 Mounted Hole: M7 -

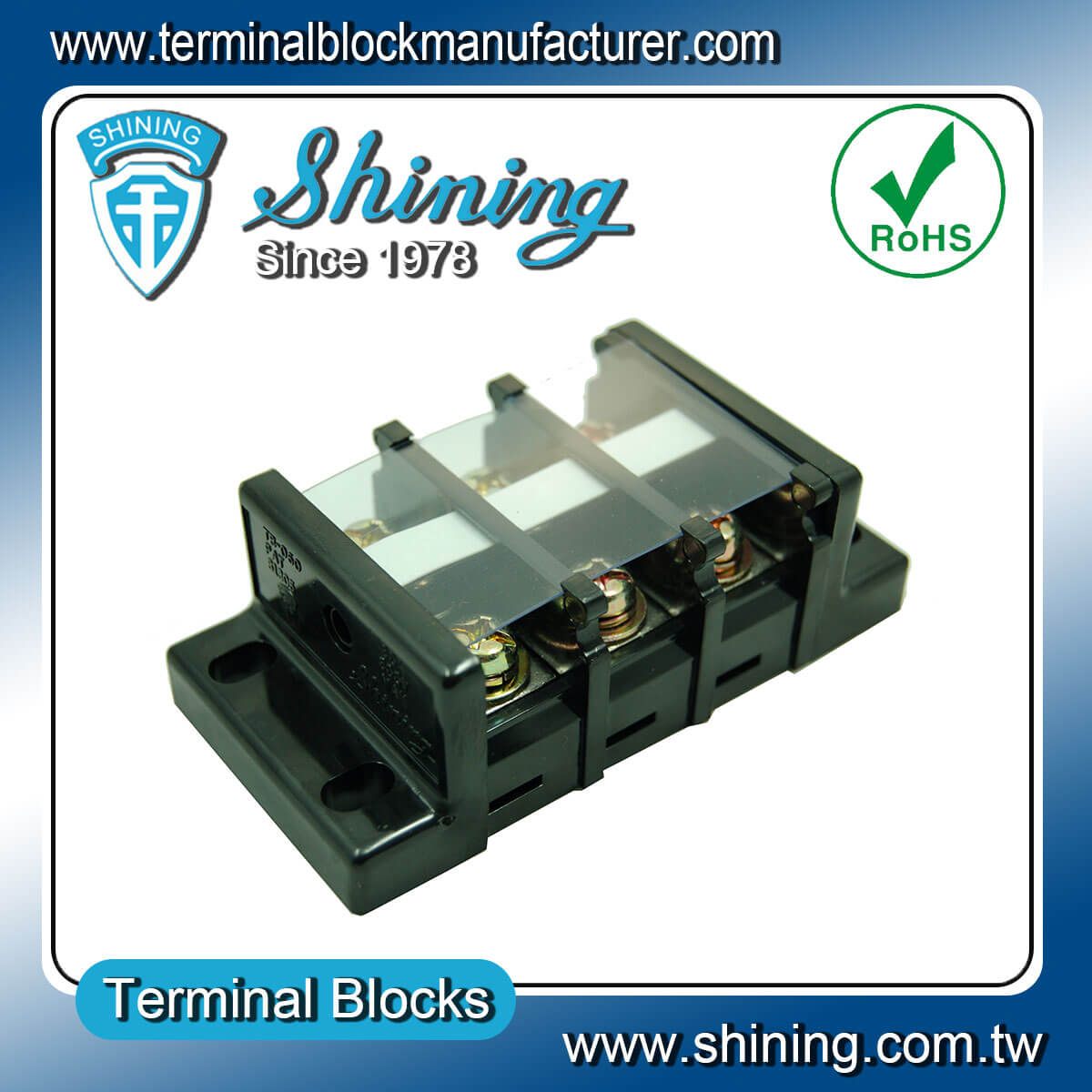

TB-080 Panel Mounted Assembly Type 600V 80A Termin
Item number: TB-080 Rated Voltage: 600V Rated Current: 80A Size: 62.5*52.0*34.0mm (L*W*H) Wire Size: 25.0 mm2 / AWG 4 Screw Size: M6 Mounted Hole: M7 -

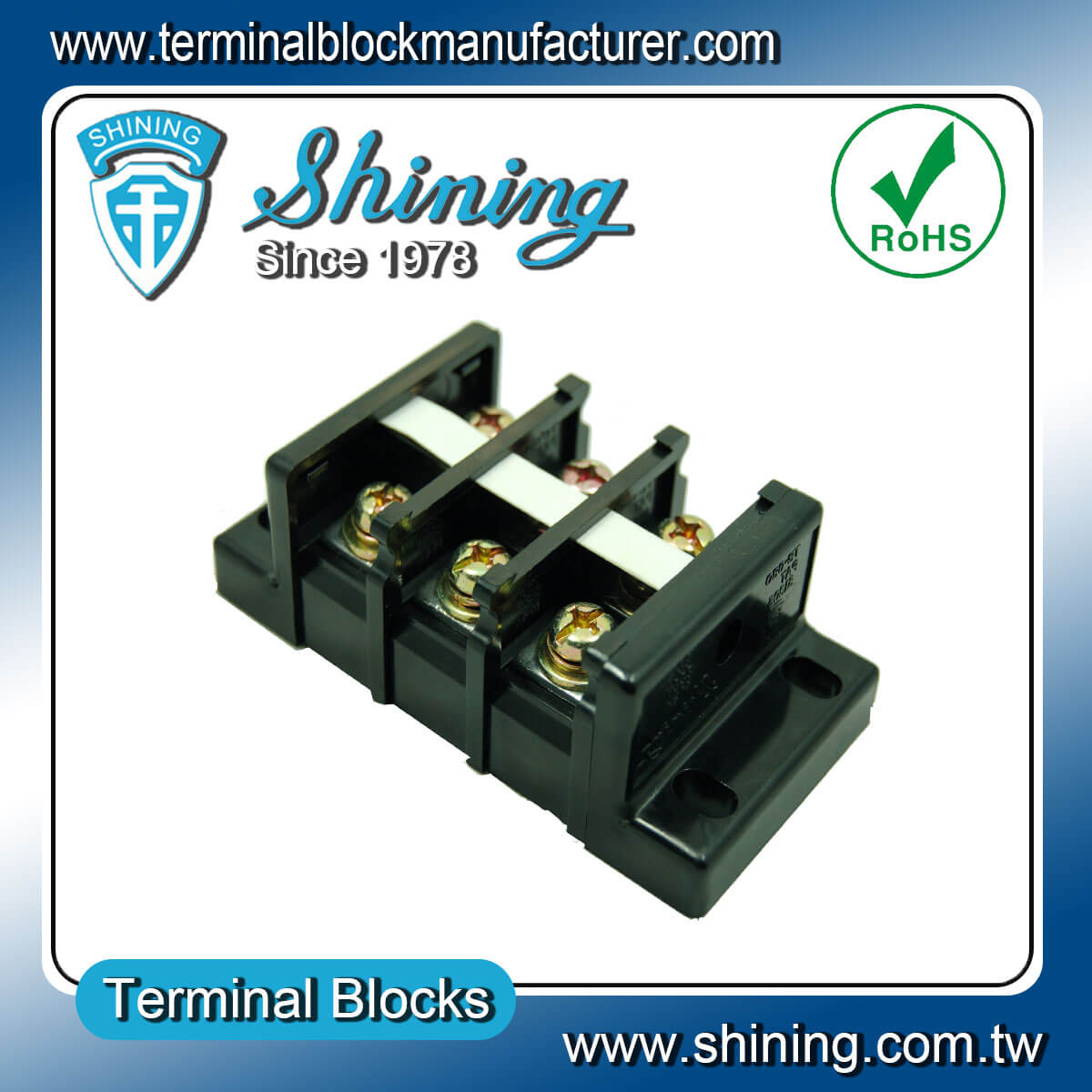

TB-100 Panel Mounted Assembly Type 600V 100A Termi
Item number: TB-100 Rated Voltage: 600V Rated Current: 100A Size: 68.5*64.0*38.0mm (L*W*H) Wire Size: 35.0 mm2 / AWG 2 Screw Size: M8 Mounted Hole: M7 -

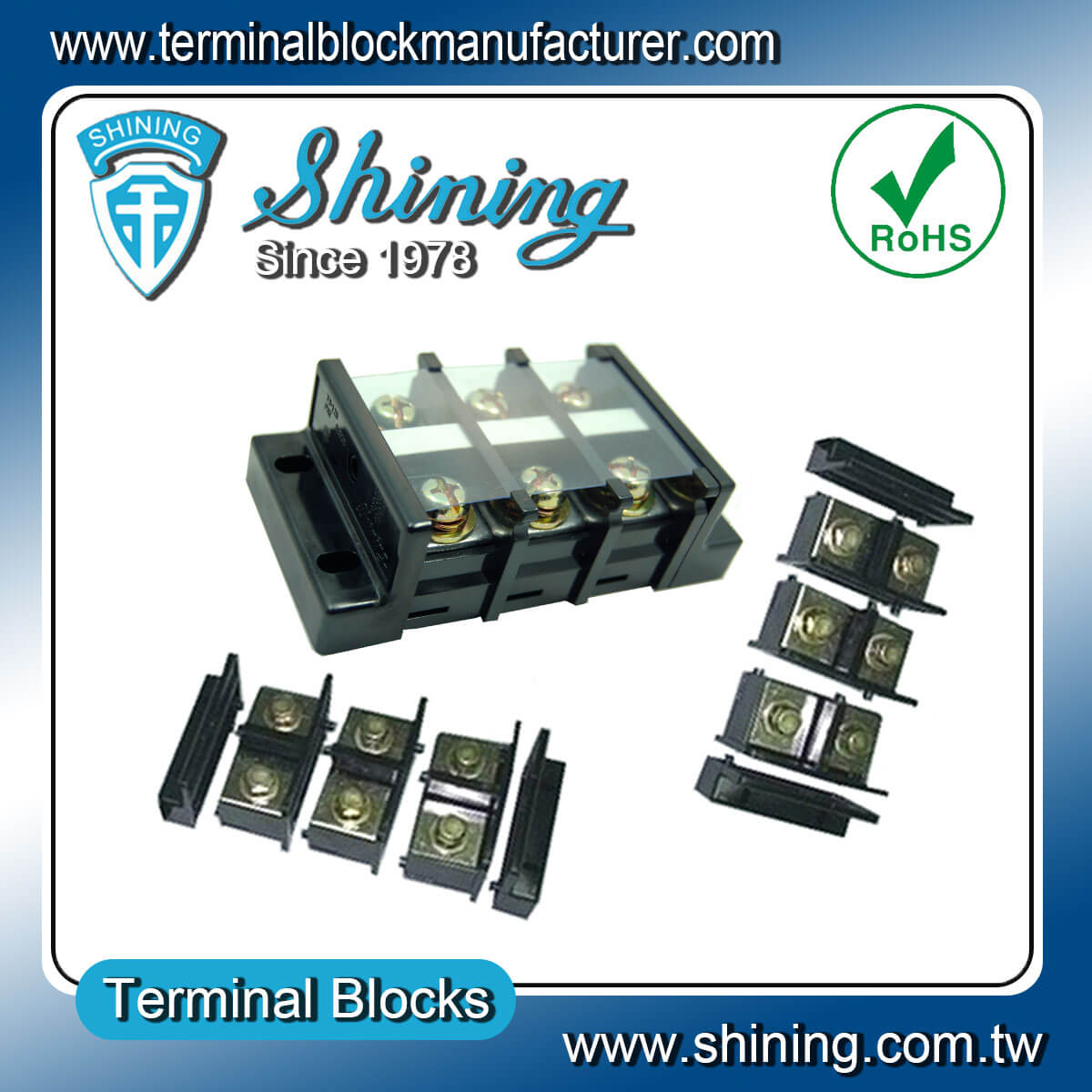

TB-125 Panel Mounted Assembly Type 600V 125A Termi
Item number: TB-125 Rated Voltage: 600V Rated Current: 125A Size: 68.5*64.0*38.0mm (L*W*H) Wire Size: 50.0 mm2 / 1 Screw Size: M8 Mounted Hole: M7 -

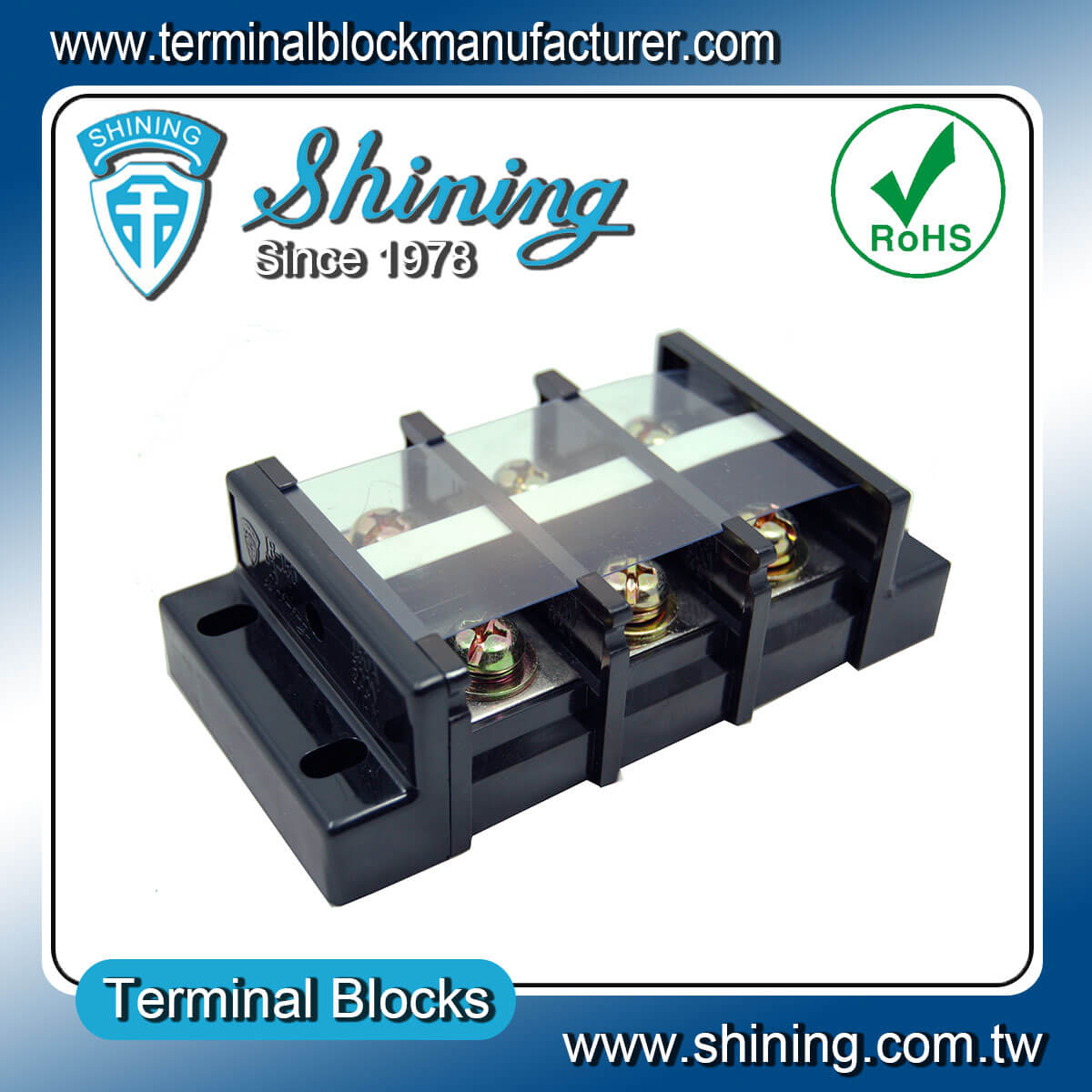

TB-150 Panel Mounted Assembly Type 600V 150A Termi
Item number: TB-150 Rated Voltage: 600V Rated Current: 150A Size: 74.0*70.0*40.0mm (L*W*H) Wire Size: 60.0 mm2 / 1/0 Screw Size: M8 Mounted Hole: M7 -

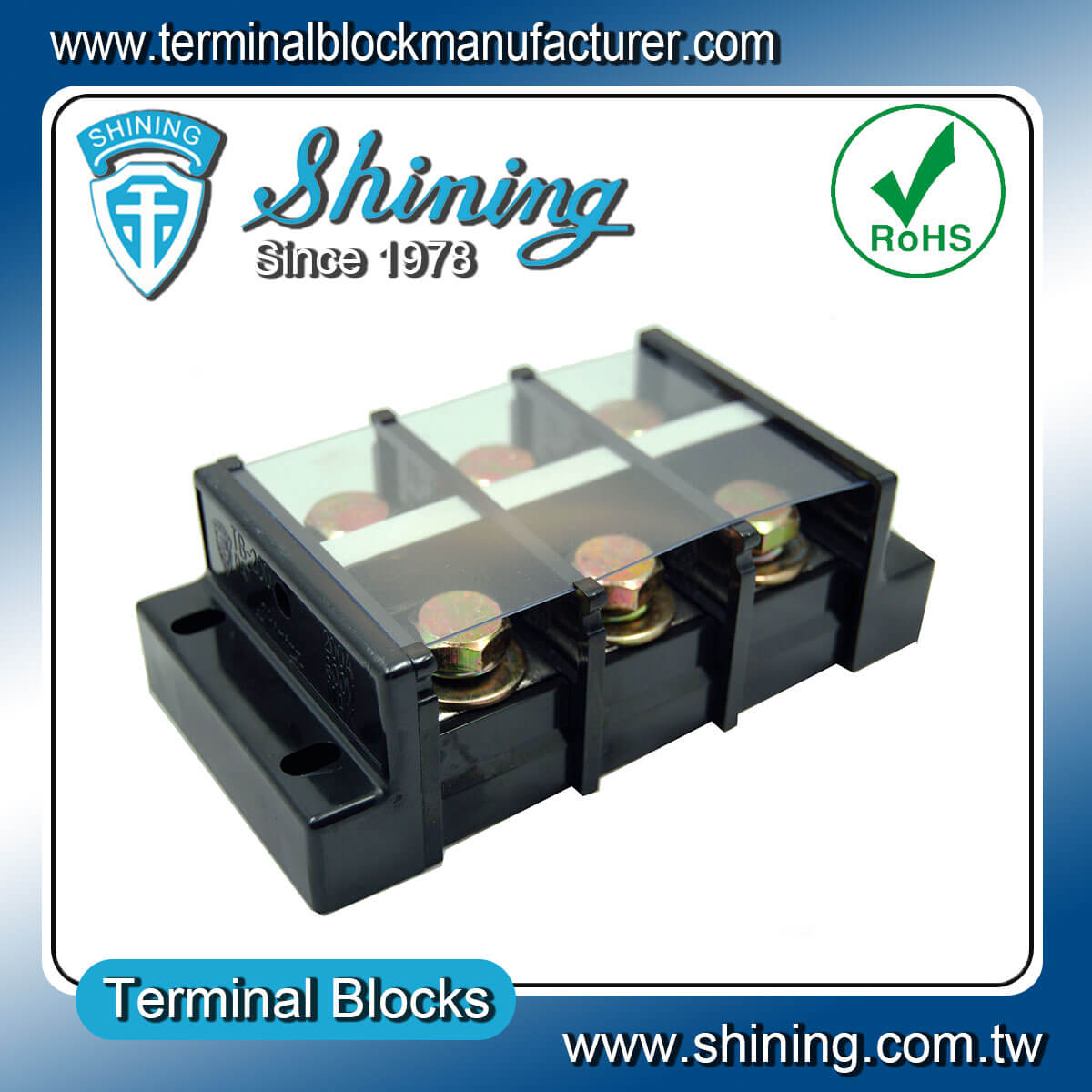

TB-200 Panel Mounted Assembly Type 600V 200A Termi
Item number: TB-200 Rated Voltage: 600V Rated Current: 200A Size: 79.0*80.0*40.0mm (L*W*H) Wire Size: 100.0 mm2 / 3/0 Screw Size: M10 Mounted Hole: M7 -

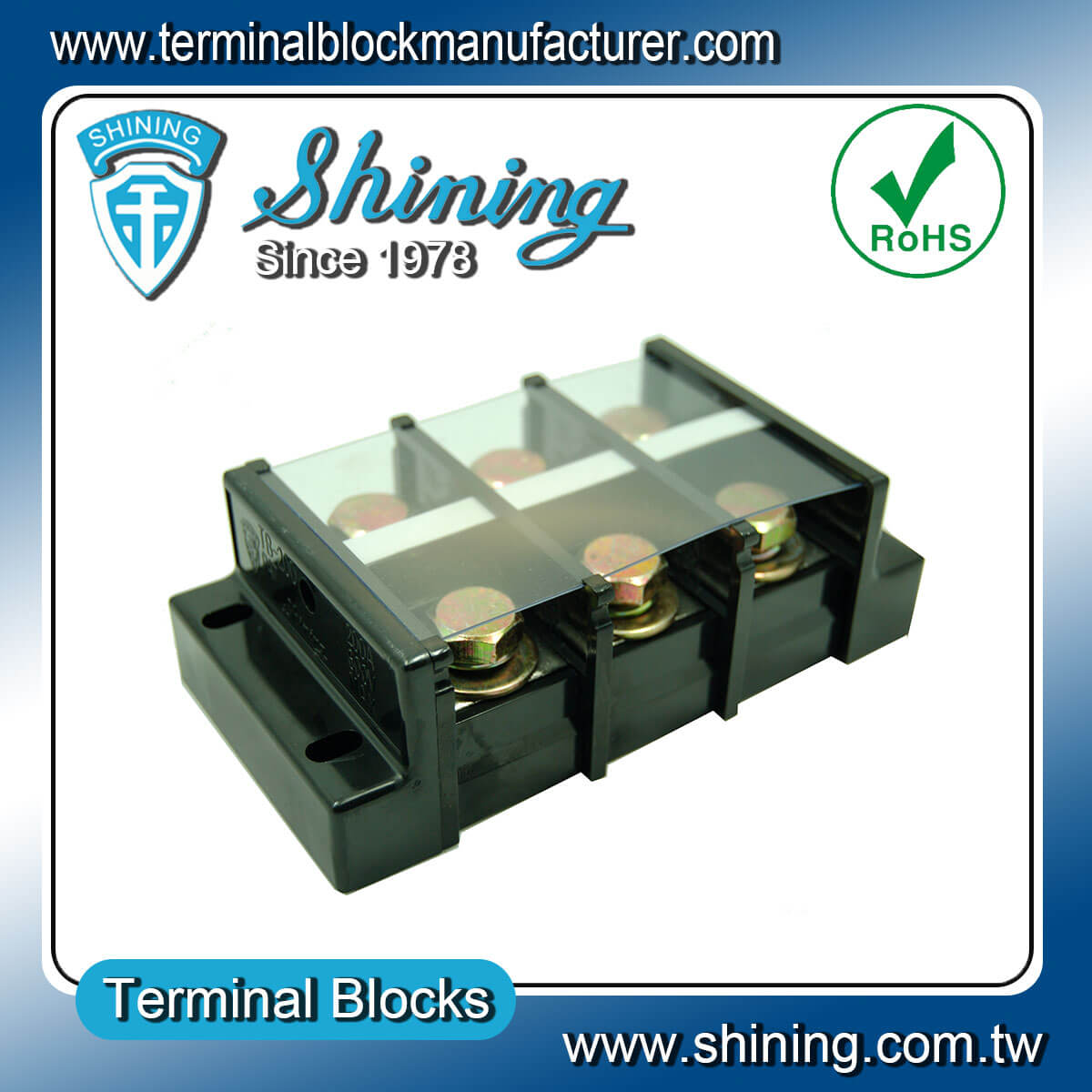

TB-300 Panel Mounted Assembly Type 600V 300A Termi
Item number: TB-300 Rated Voltage: 600V Rated Current: 300A Size: 92.0*106.0*58.0mm (L*W*H) Wire Size: 175.0 mm2 / 350 Screw Size: M10 Mounted Hole: M7 -

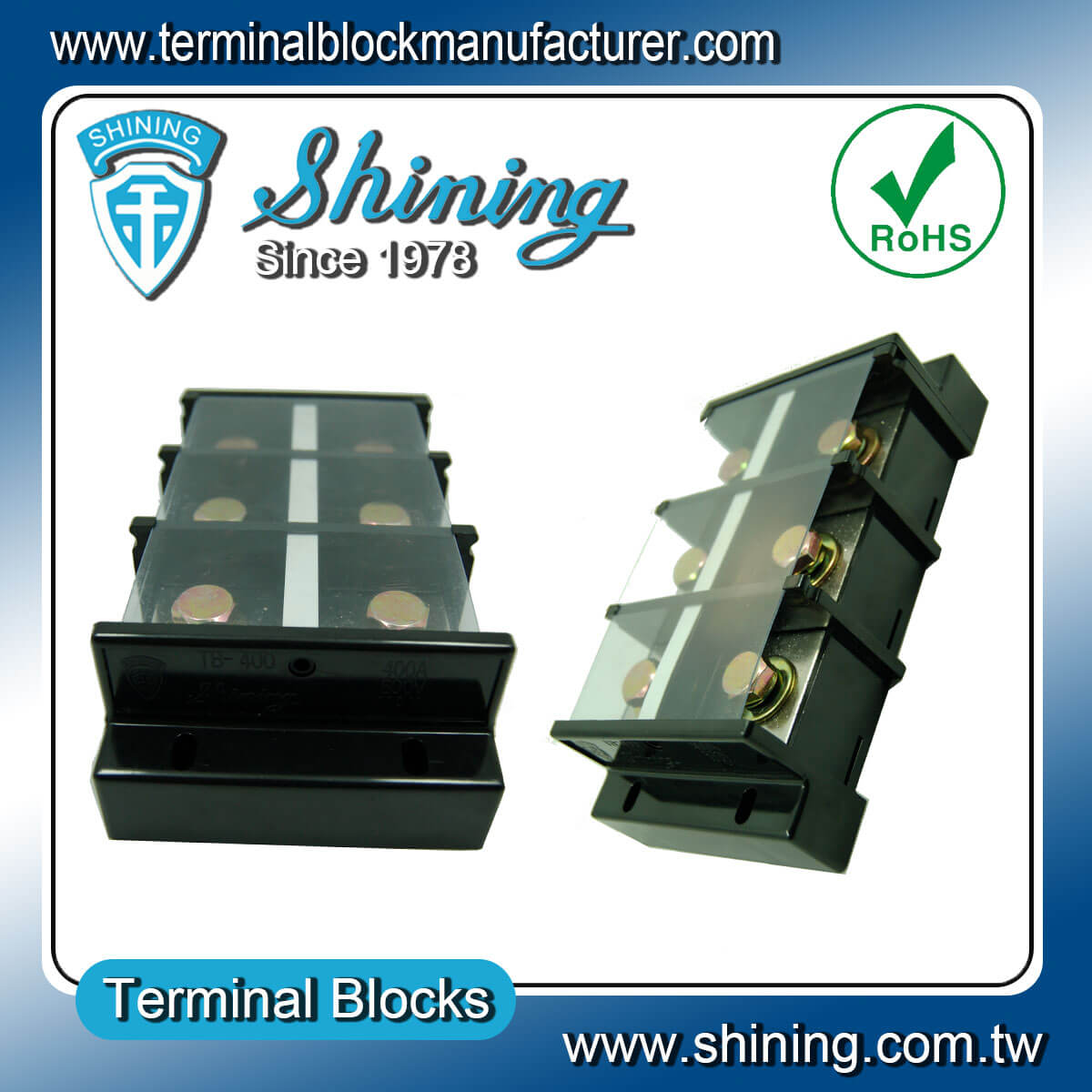

TB-400 Panel Mounted Assembly Type 600V 400A Termi
Item number: TB-400 Rated Voltage: 600V Rated Current: 400A Size: 100.0*106.0*58.0mm (L*W*H) Wire Size: 280.0 mm2 / 550 Screw Size: M10 Mounted Hole: M7
