TE Series-35mm 600V Din Rail Mounted Assembly Type Terminal Block

•

  TE-010 35mm Din Rail Mounted Assembly Type 600V 10

  Item number: TE-010 Rated Voltage: 600V Rated Current: 10A Size: 14.8*38.0*25.0mm (L*W*H) Wire Size: 1.6 mm2 / AWG 16 Screw Size: M3

  INQUIRY
•

  TE-020 35mm Din Rail Mounted Assembly Type 600V 20

  Item number: TE-020 Rated Voltage: 600V Rated Current: 20A Size: 16.8*38.0*25.0mm (L*W*H) Wire Size: 4.0 mm2 / AWG 12 Screw Size: M4

  INQUIRY
•

  TE-030 35mm Din Rail Mounted Assembly Type 600V 30

  Item number: TE-030 Rated Voltage: 600V Rated Current: 30A Size: 19.0*38.0*25.0mm (L*W*H) Wire Size: 6.0 mm2 / AWG 10 Screw Size: M4

  INQUIRY
•

  TE-040 35mm Din Rail Mounted Assembly Type 600V 40

  Item number: TE-040 Rated Voltage: 600V Rated Current: 40A Size: 21.0*38.0*25.0mm (L*W*H) Wire Size: 10.0 mm2 / AWG 8 Screw Size: M5

  INQUIRY
•

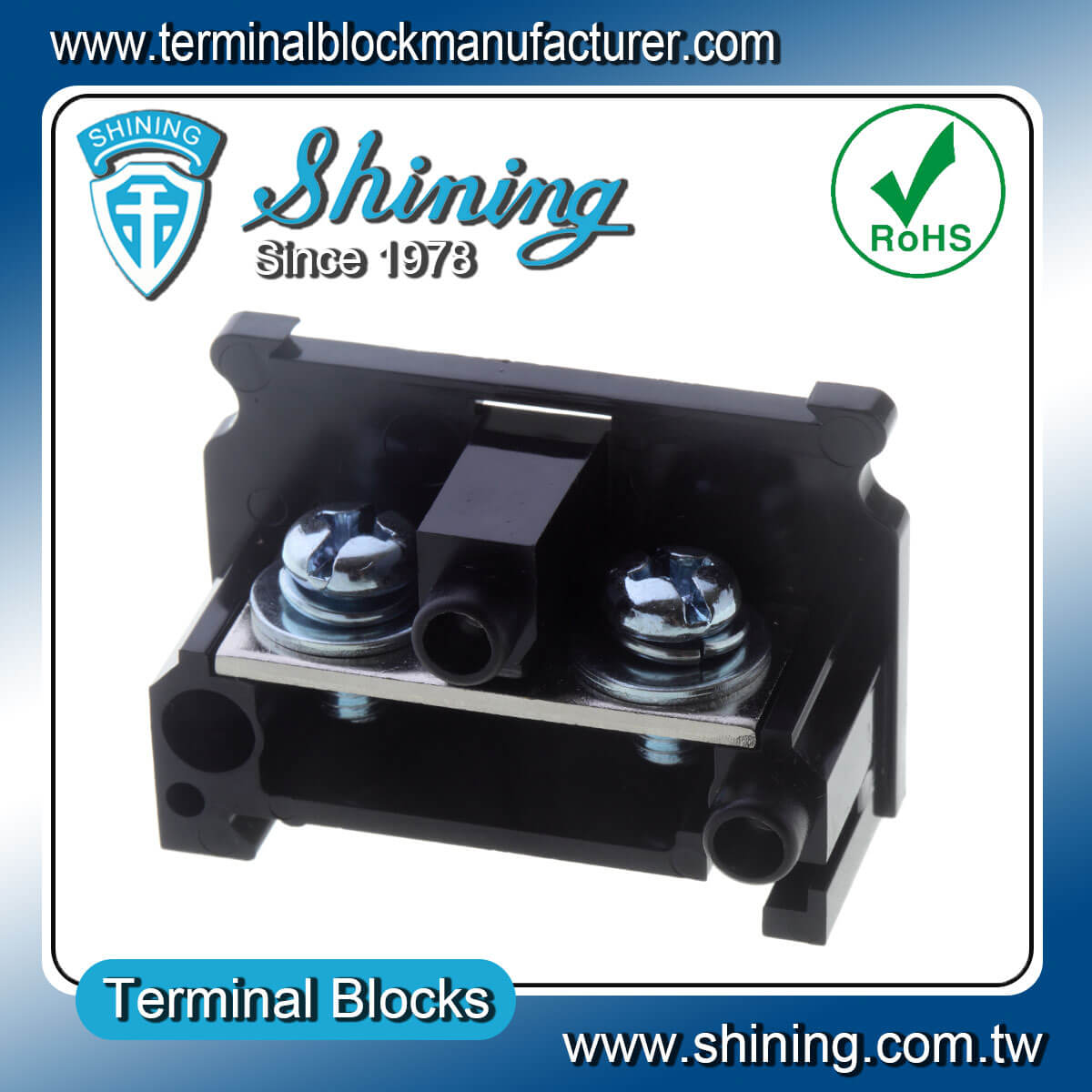

  TE-060 35mm Din Rail Mounted Assembly Type 600V 60

  Item number: TE-060 Rated Voltage: 600V Rated Current: 60A Size: 27.5*52.0*34.0mm (L*W*H) Wire Size: 16.0 mm2 / AWG 6 Screw Size: M6

  INQUIRY
•

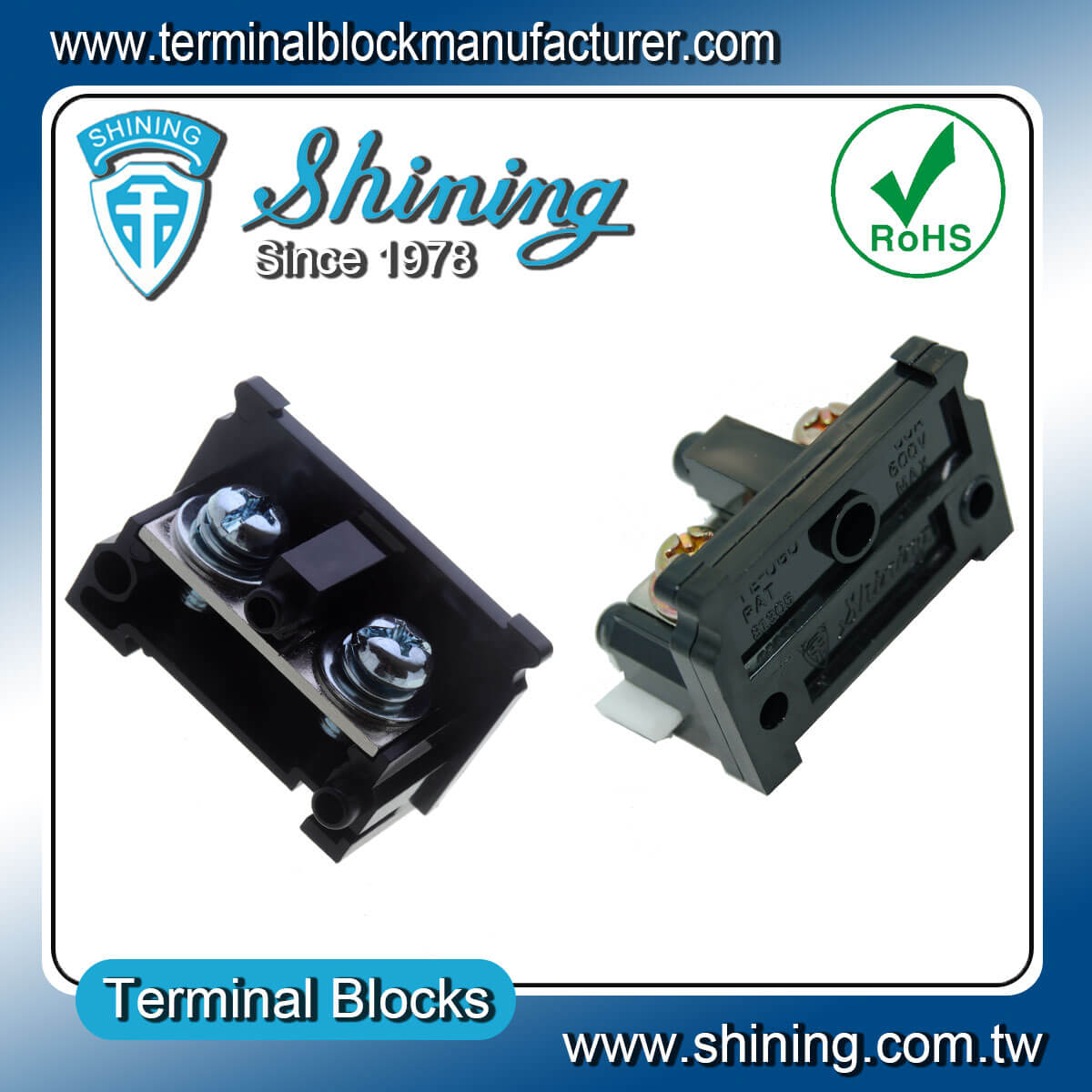

  TE-080 35mm Din Rail Mounted Assembly Type 600V 80

  Item number: TE-080 Rated Voltage: 600V Rated Current: 80A Size: 27.5*52.0*34.0mm (L*W*H) Wire Size: 25.0 mm2 / AWG 4 Screw Size: M6

  INQUIRY
•

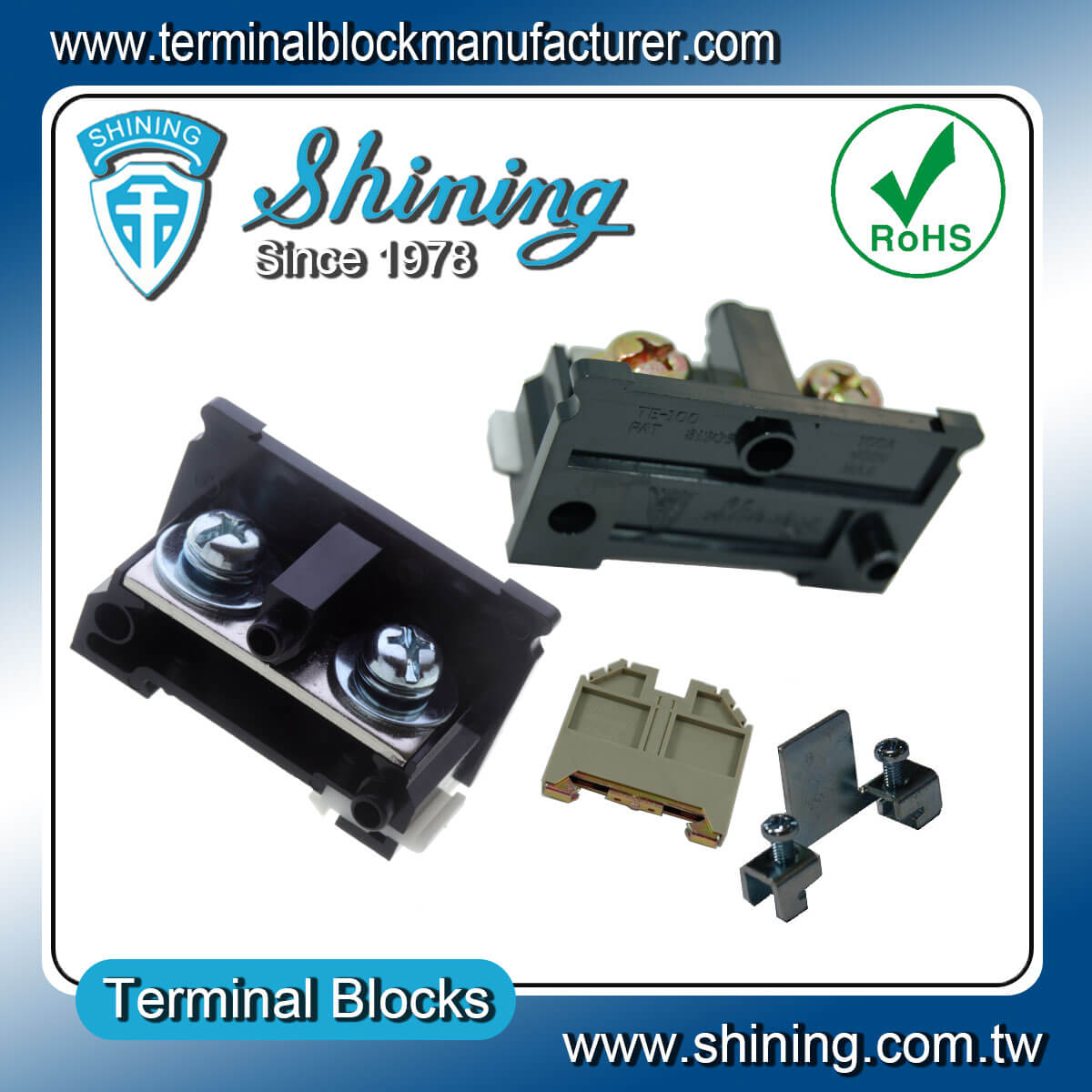

  TE-100 35mm Din Rail Mounted Assembly Type 600V 10

  Item number: TE-100 Rated Voltage: 600V Rated Current: 100A Size: 34.5*64.0*38.0mm (L*W*H) Wire Size: 35.0 mm2 / AWG 2 Screw Size: M8

  INQUIRY
•

  TE-125 35mm Din Rail Mounted Assembly Type 600V 12

  Item number: TE-125 Rated Voltage: 600V Rated Current: 125A Size: 34.5*64.0*38.0mm (L*W*H) Wire Size: 50.0 mm2 / 1 Screw Size: M8

  INQUIRY
•

  TE-150 35mm Din Rail Mounted Assembly Type 600V 15

  Item number: TE-150 Rated Voltage: 600V Rated Current: 150A Size: 38.0*70.0*40.0mm (L*W*H) Wire Size: 60.0 mm2 / 1/0 Screw Size: M8

  INQUIRY
•

  TE-200 35mm Din Rail Mounted Assembly Type 600V 20

  Item number: TE-200 Rated Voltage: 600V Rated Current: 200A Size: 43.0*80.0*48.0mm (L*W*H) Wire Size: 100.0 mm2 / 3/0 Screw Size: M10

  INQUIRY
•

  TE-300 35mm Din Rail Mounted Assembly Type 600V 30

  Item number: TE-300 Rated Voltage: 600V Rated Current: 300A Size: 52.0*106.0*58.0mm (L*W*H) Wire Size: 175.0 mm2 / 350 Screw Size: M10

  INQUIRY
•

  TE-400 35mm Din Rail Mounted Assembly Type 600V 40

  Item number: TE-400 Rated Voltage: 600V Rated Current: 400A Size: 60.0*106.0*58.0mm (L*W*H) Wire Size: 280.0 mm2 / 550 Screw Size: M10

  INQUIRY
